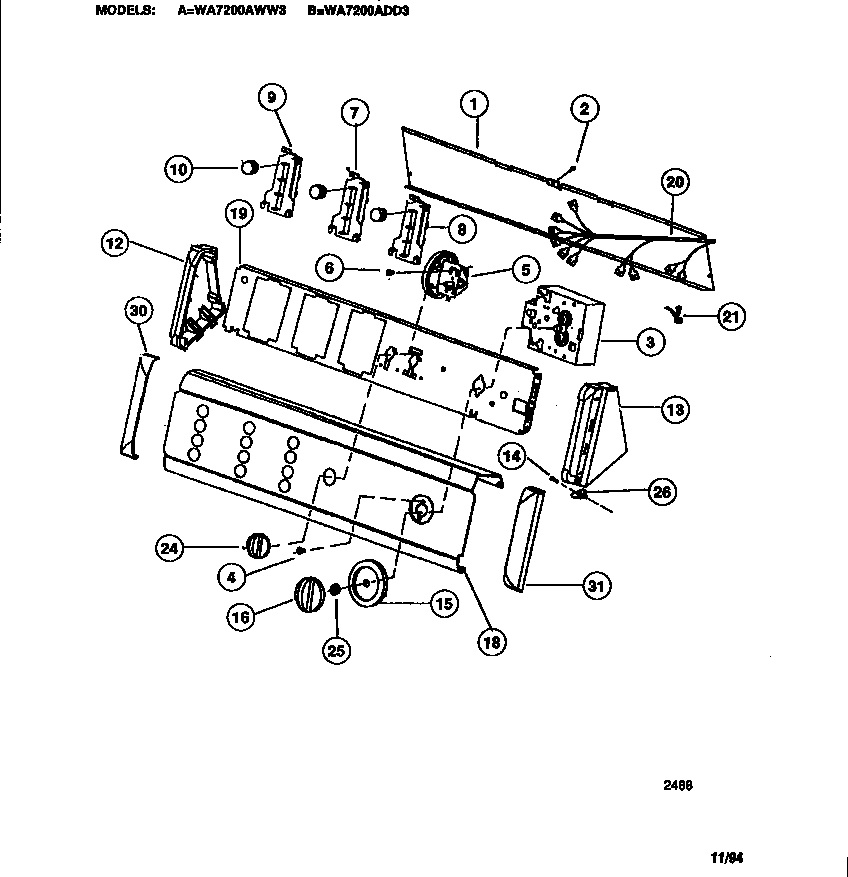

WA7200AWW3 05 – CONSOLE & CONTROLS

Written by

Products

Position	Product
1	BACKSHEET
2	131205100 Frigidaire Screw
3	WCI 5303271772
4	SCREW (2)
5	WCI 131047700
6	5303015671 Frigidaire Bracket Termination Screw
7	WCI 131118100
8	WCI 131169100
9	WCI 131047600
10	WCI 131141201
12	END CAP-L.H.-WHITE
13	END CAP-R.H.-WHITE
14	WCI 08015832
15	WCI 131140701
16	WCI 131140601
18	WCI 131173100
19	WCI 131157803
20	WCI 131169000
21	SCREW
21	131243800 Frigidaire Screw
24	131858004 Frigidaire Control Knob, White
25	Spacer,washer ,timer shaft
26	CLIP
30	COVER-CAP-LH-WHITE
31	COVER-CAP-RH-WHITE
