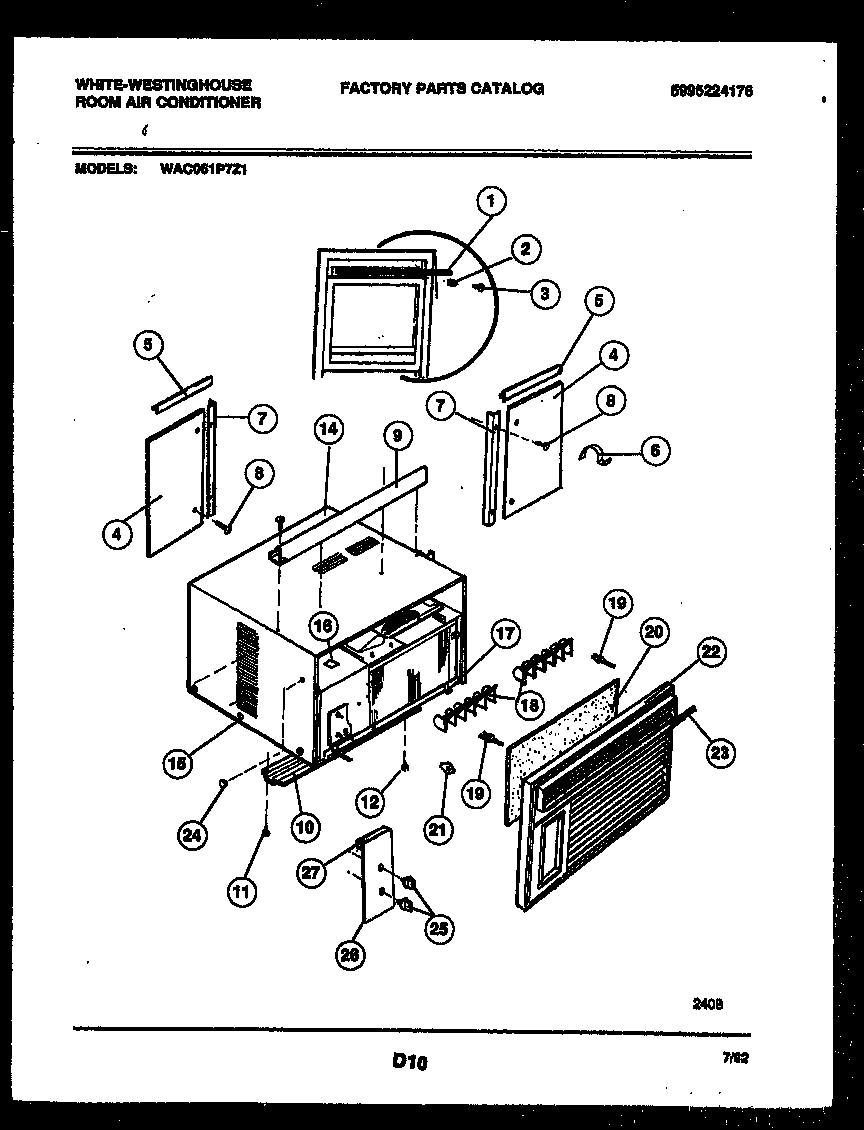

WAC051P7Z1 02 – CABINET PARTS

Products

Position	Product
1	5304407729 Frigidaire Air Conditioner Seal
2	BRACKET
3	SCREW-WOOD
4	WCI 5303272872
5	GASKET LH & RH
6	CLIP-SPRING
7	RAIL-SIDE (2)
9	WCI 5303272871
10	WCI 5303270072
11	SCREW
12A	WCI 3201594
12B	NUT
12	WCI 08016080
12C	WCI 5308002974
13	WCI 5303272873
14	WCI 5303270060
15	134178901 Frigidaire Screw
16	NUT - FRONT LOCK
17	WCI 5303001784
18	LINK LOUVER
19	HANDLE-LOUVER
20	WCI 3016117
21	INSERT
22	FRONT COMPLETE (DOES NOT INCLUDE FILTER & CLIP)
23	WCI 5303271344
24	SCREW
25	WCI 5300331902
26	WCI 5303289525
27	SEAL-DIAL PLATE
