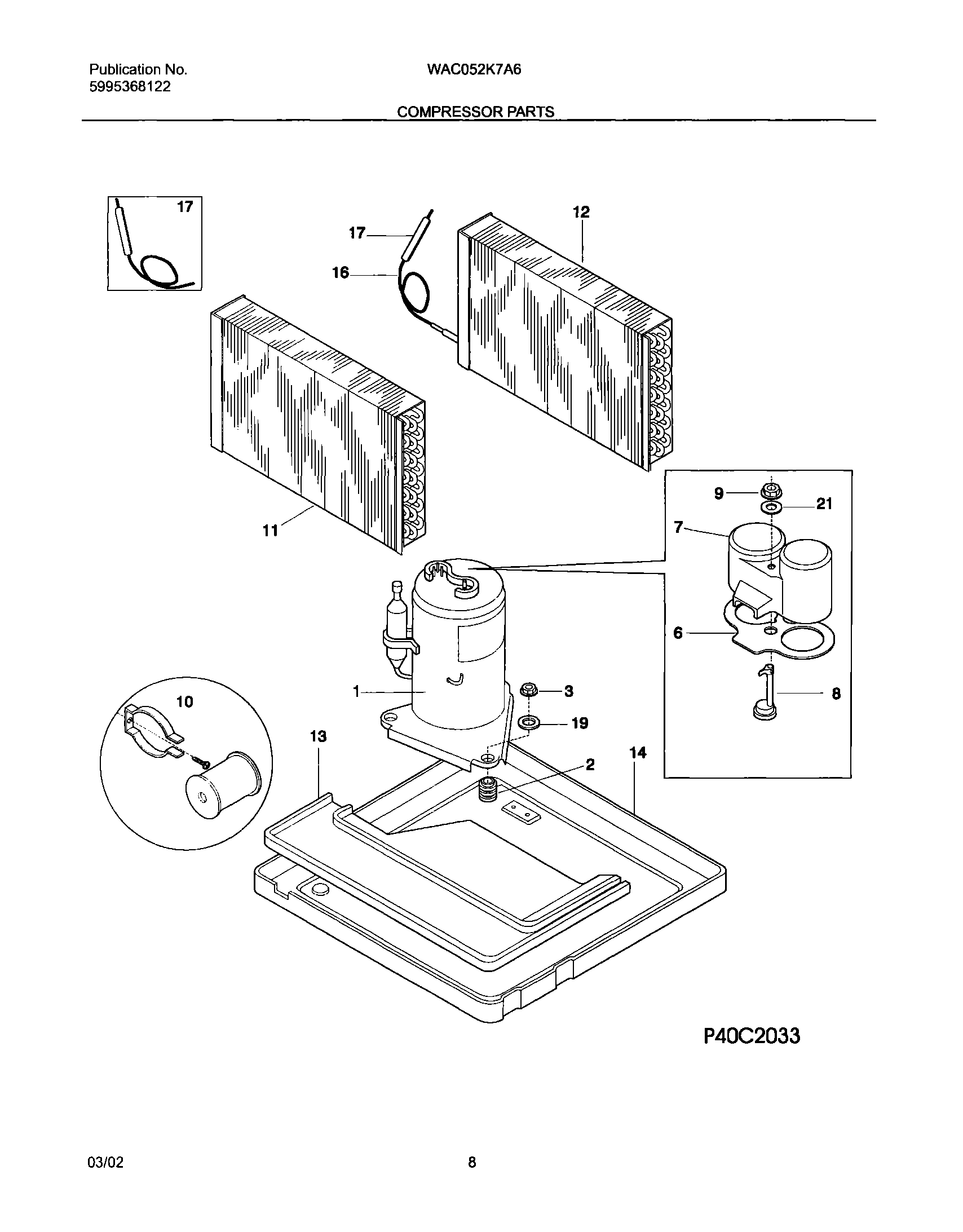

WAC052K7A6 09 – COMPRESSOR PARTS

Products

Position	Product
NI	WCI 309112501
1	WCI 5304426656
2	GROMMET,COMPRESSOR MTG ,(3)
3	NUT,COMPRESSOR MTG ,(3)
6	WCI 5303291330
7	WCI 5304416126
8	WCI 5304417320
9	WCI 5303294292
10	WCI 5303317601
11	WCI 309637403
12	WCI 309637605
13	Tray,evap drip
14	Base,compressor mt. ,with studs
16	WCI 5304423363
17	5300265301 Frigidaire Air Conditioner P1 Filter Drier
19	WASHER,COMPRESSOR MTG
21	WCI 5303293809
