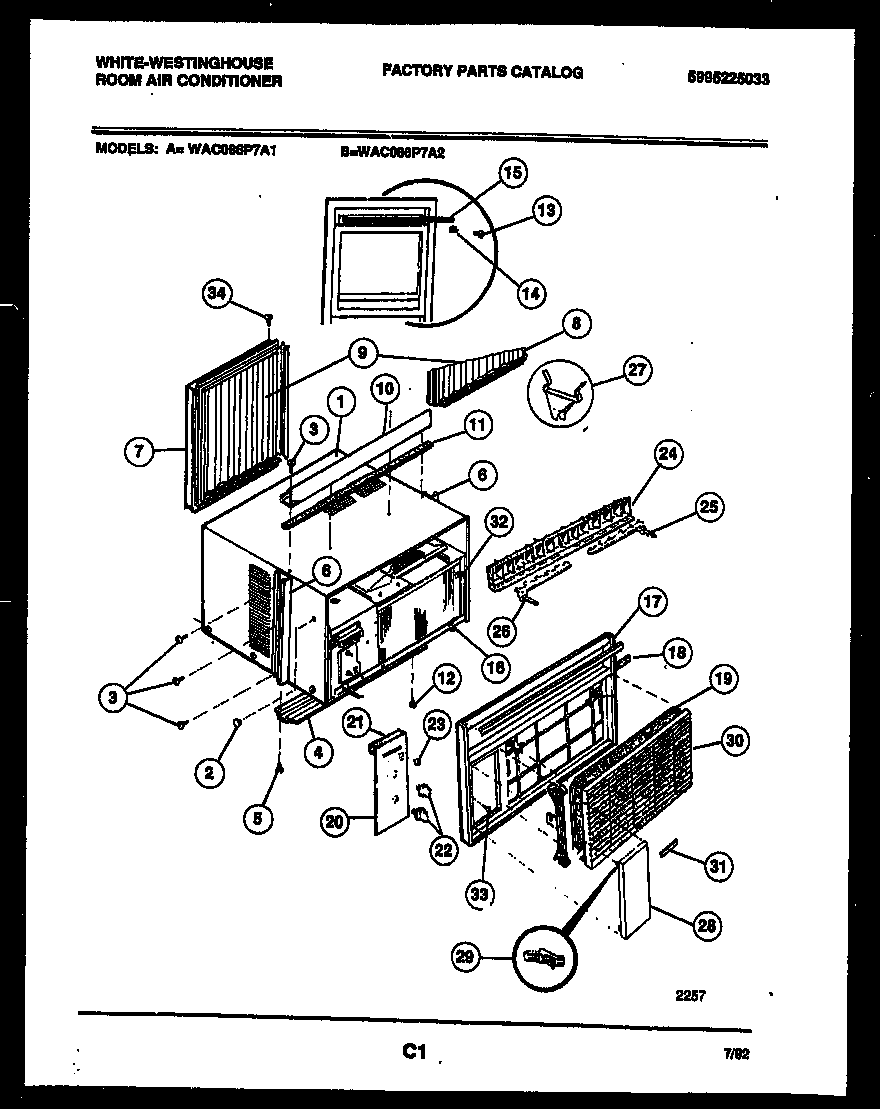

WAC086P7A2 02 – CABINET PARTS

Products

Position	Product
1	WCI 5303270060
2	WCI 08016091
3	134178901 Frigidaire Screw
4	WCI 5303270072
5	SCREW
6	WCI 5303270073
7	WCI 5303282370
8	WCI 5303282371
9	WCI 5303270075
10	WCI 5303270064
11	WCI 08016226
12	WCI 08016080
13	WCI 5308002974
14	BRACKET
15	5304407729 Frigidaire Air Conditioner Seal
16	WCI 5303001784
17	WCI 3016097
18	WCI 3016094
19	FILTER
20	WCI 5303280596
21	SEAL-DIAL PLATE
22	WCI 5300331902
23	WCI 5303002189
24	VERTICAL LOUVER & LINK ASSY
25	LINK-VERTICAL LOUVER RH
26	LINK VERTICAL LOUVER LH
27	WCI 5303001844
28	DOOR
29	HINGE - DOOR
30	PANEL
31	WCI 5300138101
32	BRACKET-FRONT (NON-ILLUSTRATED)
33	SCREW-FRONT
34	WCI 3002801
