WAC103K1A1 11 – SYSTEM

Products

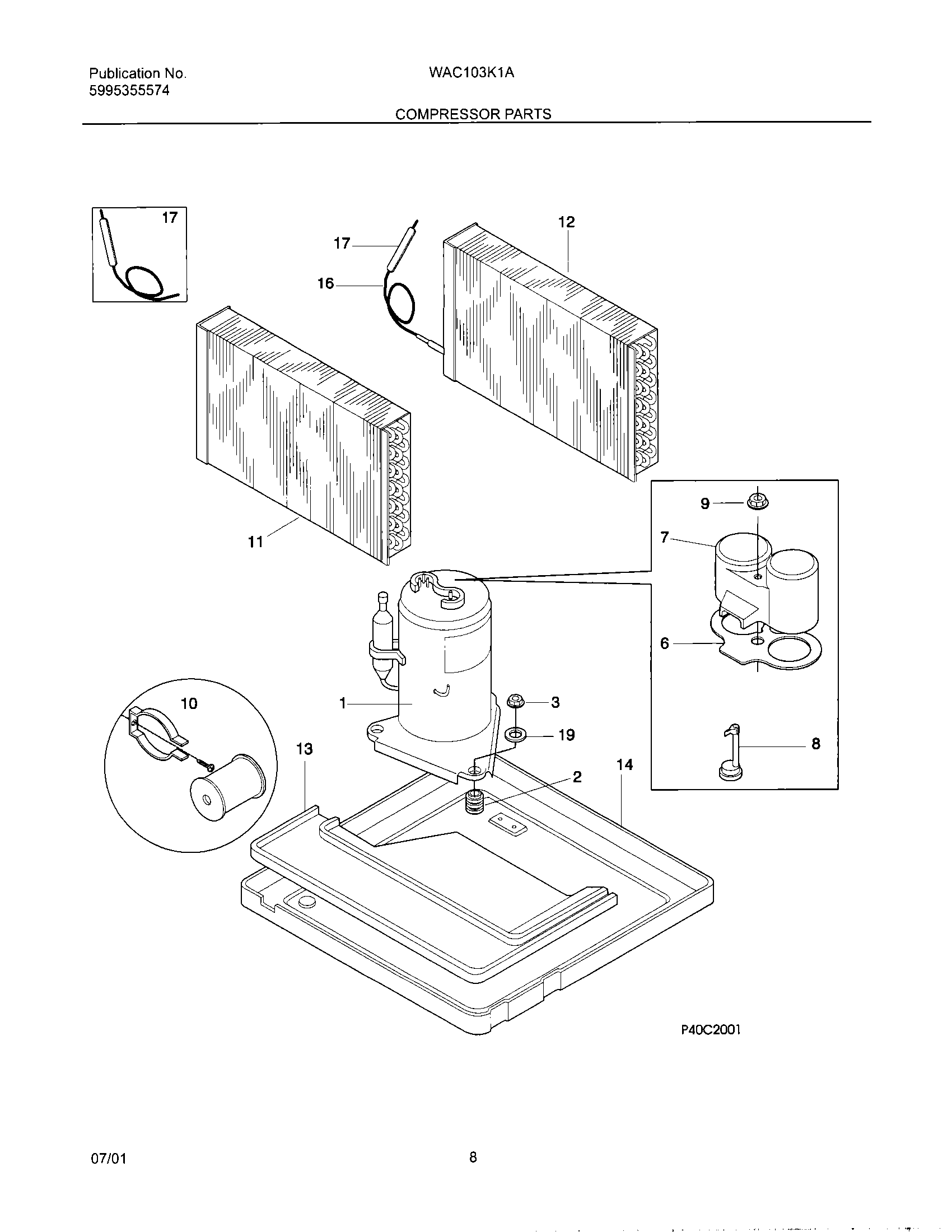

Position	Product
NI	WCI 309112501
1	WCI 5304419112
2	GROMMET,COMPRESSOR MTG ,(3)
3	NUT,COMPRESSOR MTG ,(3)
6	GASKET-TERMINAL
7	COVER-TERMINAL
8	WCI 5303295567
9	WCI 5303211017
10	WCI 5303317601
11	WCI 309619309
12	WCI 309645405
13	Tray,evap drip
14	Base,compressor mt. ,with studs
16	Capillary Tube,45 inch long ,cut to length
17	Tube-process
19	WASHER,COMPRESSOR MTG
