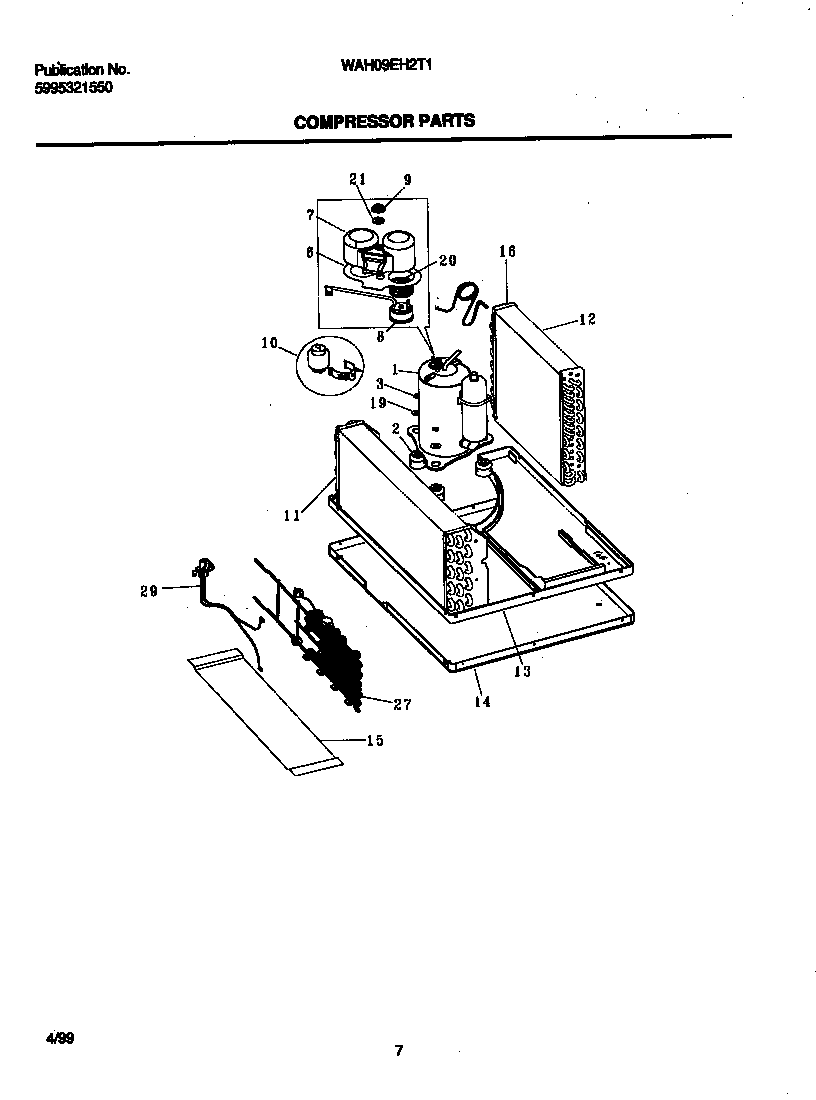

WAH09EH2T1 05 – COMPRESSOR

Products

PositionProduct
1WCI 5303285483
2GROMMET,COMPRESSOR MTG ,(3)
3NUT,COMPRESSOR MTG ,(3)
6WCI 5303002035
7COVER-TERMINAL
8WCI 5304408745
9WCI 5303301734
11WCI 309632303
12WCI 309632503
14WCI 309628702
15WCI 309629501
19WASHER,COMPRESSOR MTG
20SPRING-OVERLOAD
21WCI 5303295516
27+HEATER ASSY-18.5 230V/3450W
30VALVE-DRAIN (NON-ILLUSTRATED)
32NUT-HEATER
36+HARNESS-WIR HTR 18.5 12AWG
