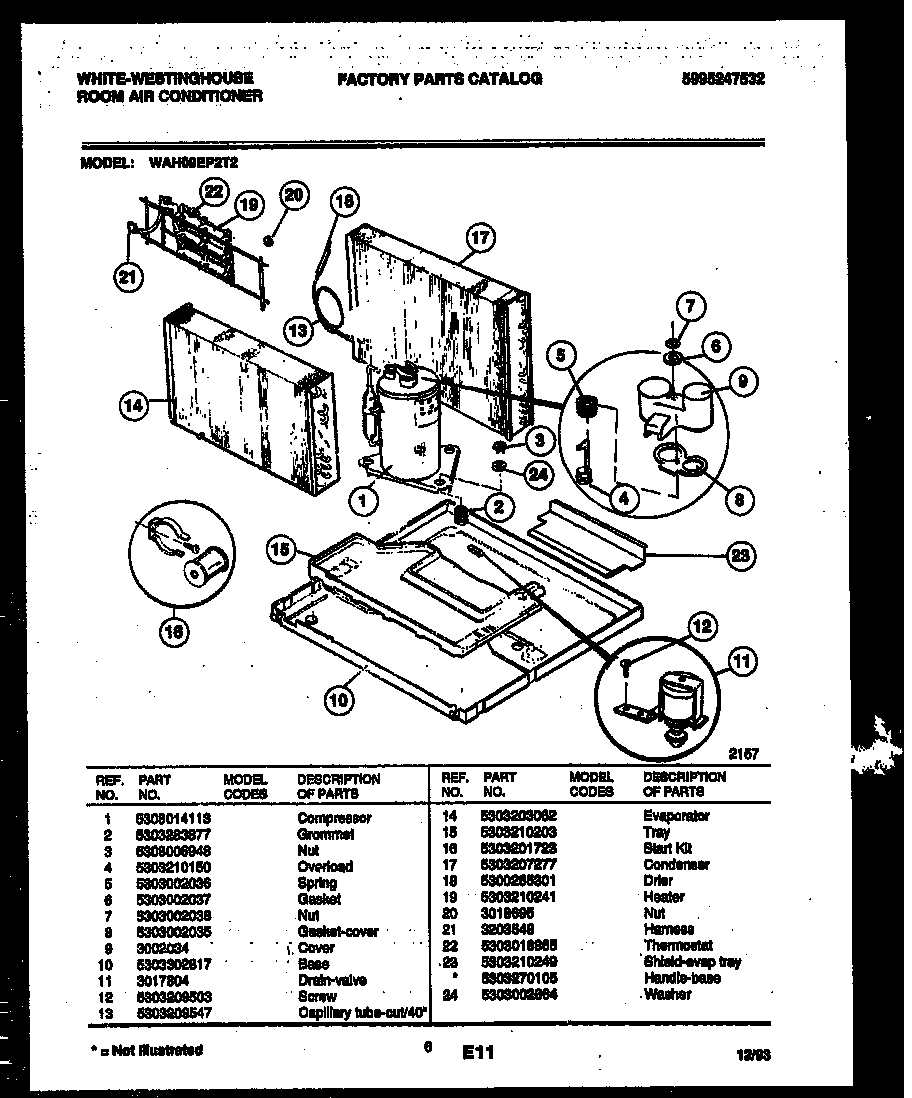

WAH09EP2T2 05 – SYSTEM PARTS

Products

Position	Product
1	WCI 5308014113
2	GROMMET,COMPRESSOR MTG ,(3)
3	NUT,COMPRESSOR MTG ,(3)
4	WCI 5303210150
5	SPRING-OVERLOAD
6	WCI 5303002037
7	NUT-TERMINAL COVER
8	WCI 5303002035
9	COVER-TERMINAL
10	WCI 5303302817
11	VALVE-DRAIN (NON-ILLUSTRATED)
12	SCREW-DRAIN (2)
13	CAPILLARY TUBE
14	WCI 5303203062
15	WCI 5303210203
16	STARTER KIT
17	WCI 5303207277
18	5300265301 Frigidaire Air Conditioner P1 Filter Drier
19	WCI 5303210241
20	NUT-HEATER
21	HARNESS-WIRE HEATER TOP
22	THERMOSTAT-HEATER
23	HEAT SHIELD EVAP TRAY (NON-ILLUSTRATED)
23A	HANDLE-BASE
24	WASHER,COMPRESSOR MTG
