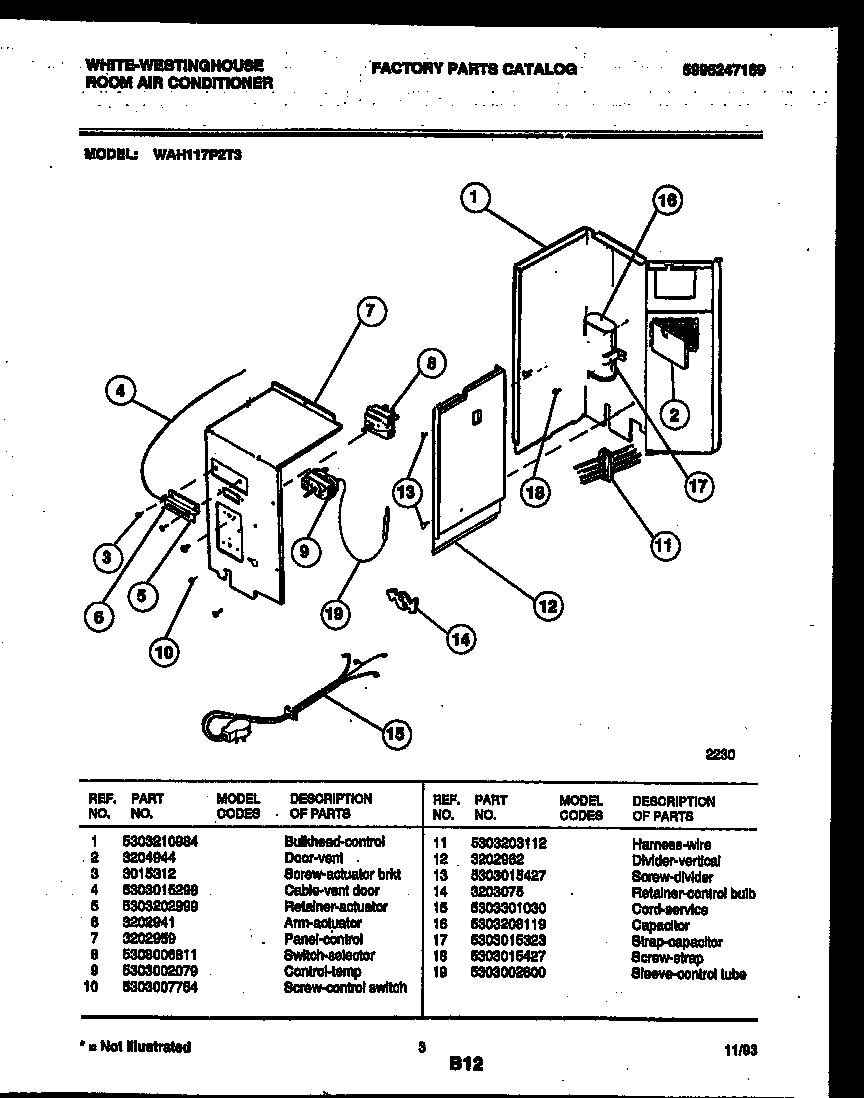

WAH117P2T3 03 – ELECTRICAL PARTS

Written by

Products

Position	Product
1	WCI 5303210984
2	WCI 3204944
3	134178901 Frigidaire Screw
4	WCI 5303015298
5	RETAINER
6	ACTUATOR-ARM
7	WCI 3202959
8	SWITCH
9	CONTROL
10	SCREW
11	HARNESS
12	DIVIDER
14	CLIP-FILTER & SENSING BULB
15	WCI 5303301030
16	WCI 5303208119
17	STRAP
19	SLEEVE-CAP TUBE (NON-ILLUSTRATED)
