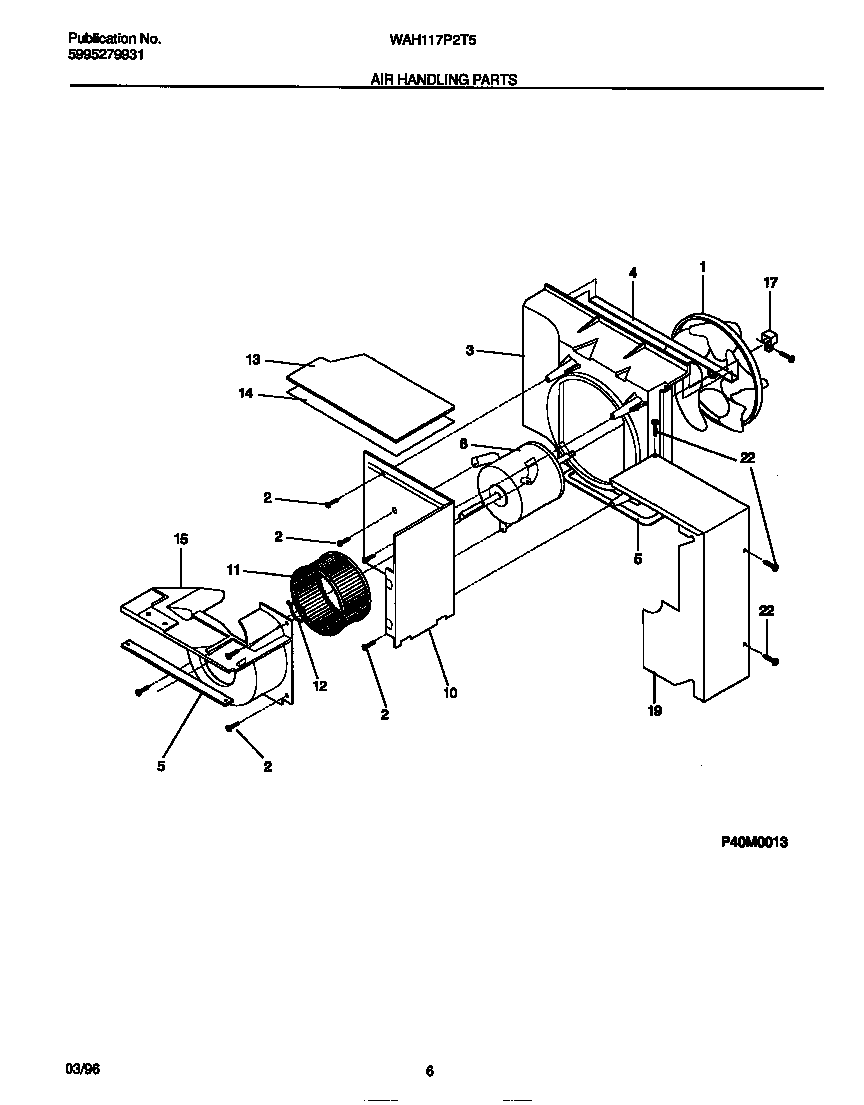

WAH117P2T5 04 – AIR HANDLING PARTS

Written by

Products

Position	Product
1	FAN-BLADE-W/ CLAMP
2	131202300 Frigidaire Screw
3	WCI 5303207278
4	SEAL-COND SHROUD BASE (RH)
5	SEAL-CONDENSER BASE (NON-ILLUSTRATED)
8	WCI 5303302660
10	BULK HEAD-AAIR SYSTEM
11	WCI 5303210236
12	WCI 5303012110
13	WCI 3202957
14	PAD – COVER
15	SCROLL-EVAPORATOR
17	CLAMP – FAN BLADE
19	WCI 5303270122
22	134178901 Frigidaire Screw
