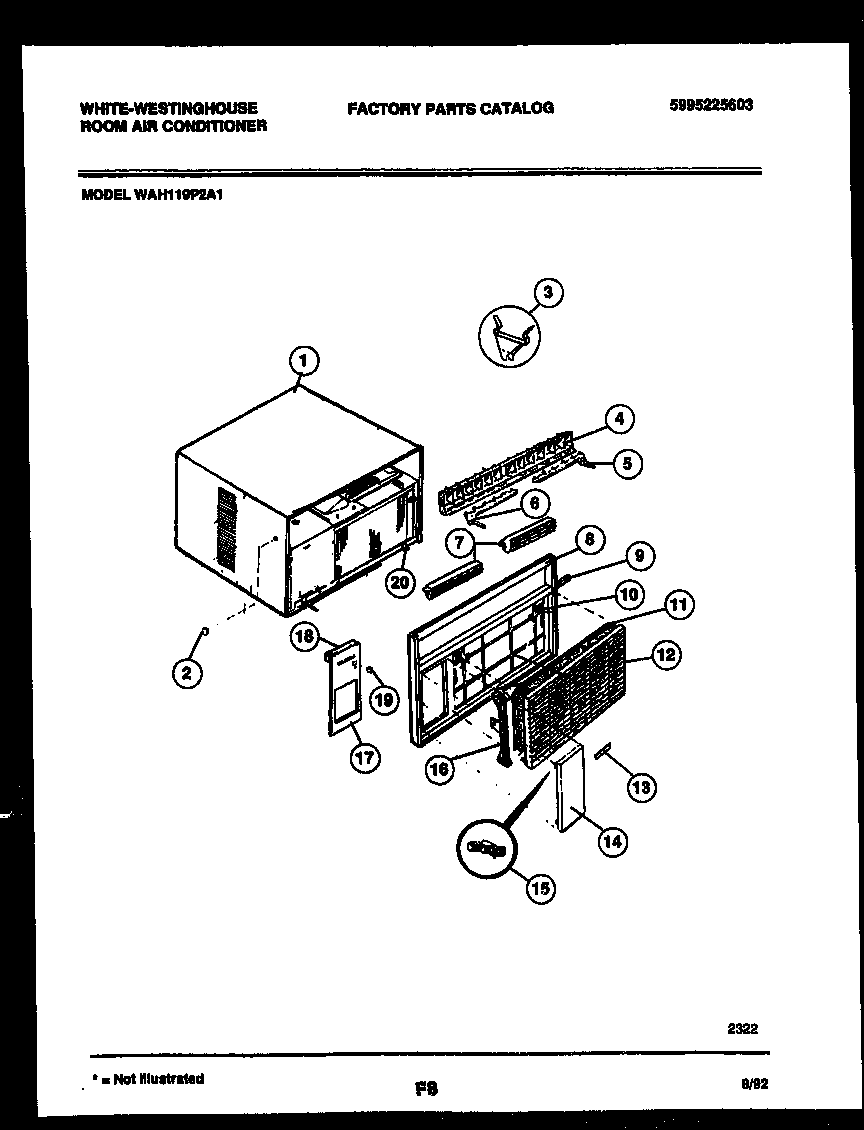

WAH119P2A1 02 – CABINET PARTS

Products

Position	Product
1A	GRILLE-REAR (NON-ILLUSTRATED)
1	WRAPPER
1B	NAMEPLATE-GRILLE (NON-ILLUSTRATED)
2	PLUG BTN
3	WCI 5303001844
4	VERT. LOUVER & LINK ASSY.
5	LINK – VERT LOUVER RH
6	LINK VERTICAL LOUVER LH
7	FRAME-HORIZONTAL LOUVER
8	WCI 5303202806
9	WCI 5300301157
10	SCREW-FRONT
11	FILTER-AIR
12	WCI 5300454703
13	WCI 5300138101
14	WCI 5303201645
15	HINGE – DOOR
16	TRACK-FILTER (NON-ILLUSTRATED)
17	WCI 5303284620
18	SEAL-SPACER DIAL
19	WCI 5303002189
20	CLIP-FRONT TO BASE
