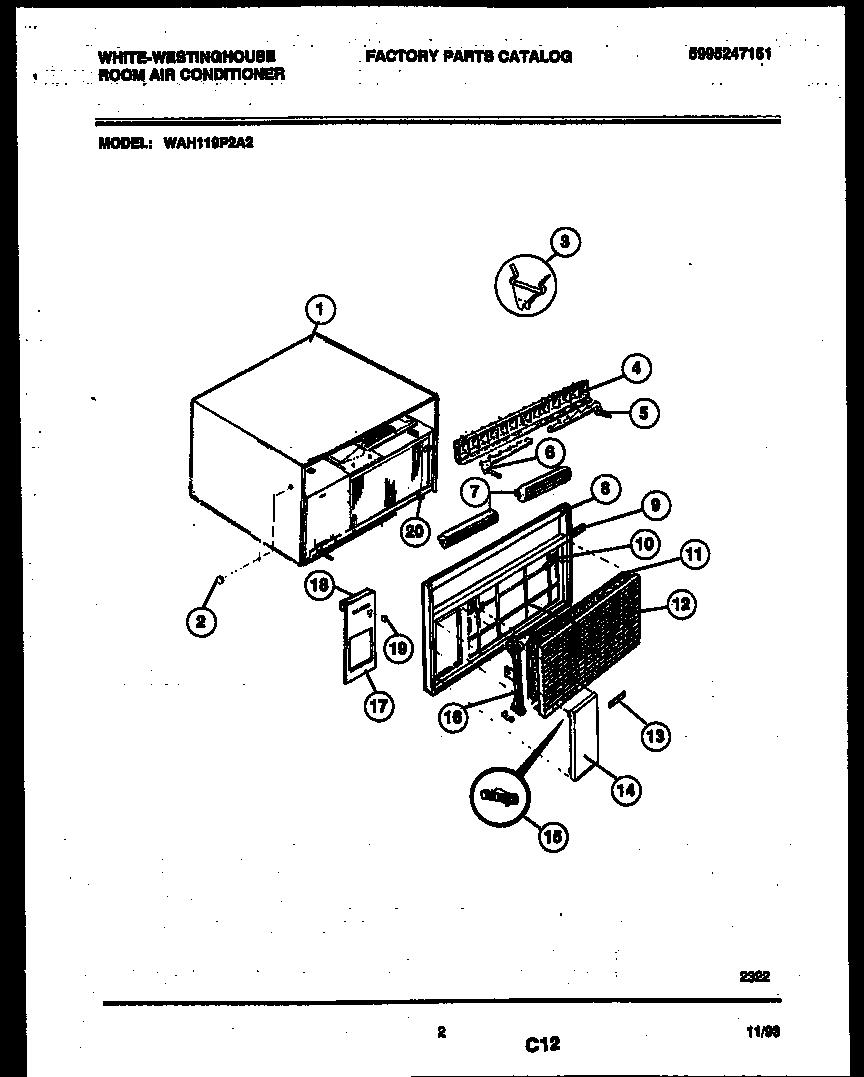

WAH119P2A2 02 – CABINET PARTS

Products

Position	Product
1A	WCI 5303301025
1	WCI 5303302607
1B	NAMEPLATE-GRILLE (NON-ILLUSTRATED)
2	WCI 08016091
3	WCI 5303001844
4	VERT. LOUVER & LINK ASSY.
5	WCI 5303293786
6	WCI 5303293787
7	FRAME-HORIZONTAL LOUVER
8	WCI 5303302722
9	WCI 5300301157
10	SCREW-FRONT
11	FILTER-AIR
12	WCI 5300454703
13	WCI 5300138101
14	WCI 5303201645
15	HINGE – DOOR
16	TRACK-FILTER (NON-ILLUSTRATED)
17	WCI 5303284620
18	SEAL-SPACER DIAL
19	WCI 5303002189
20	CLIP-FRONT TO BASE
