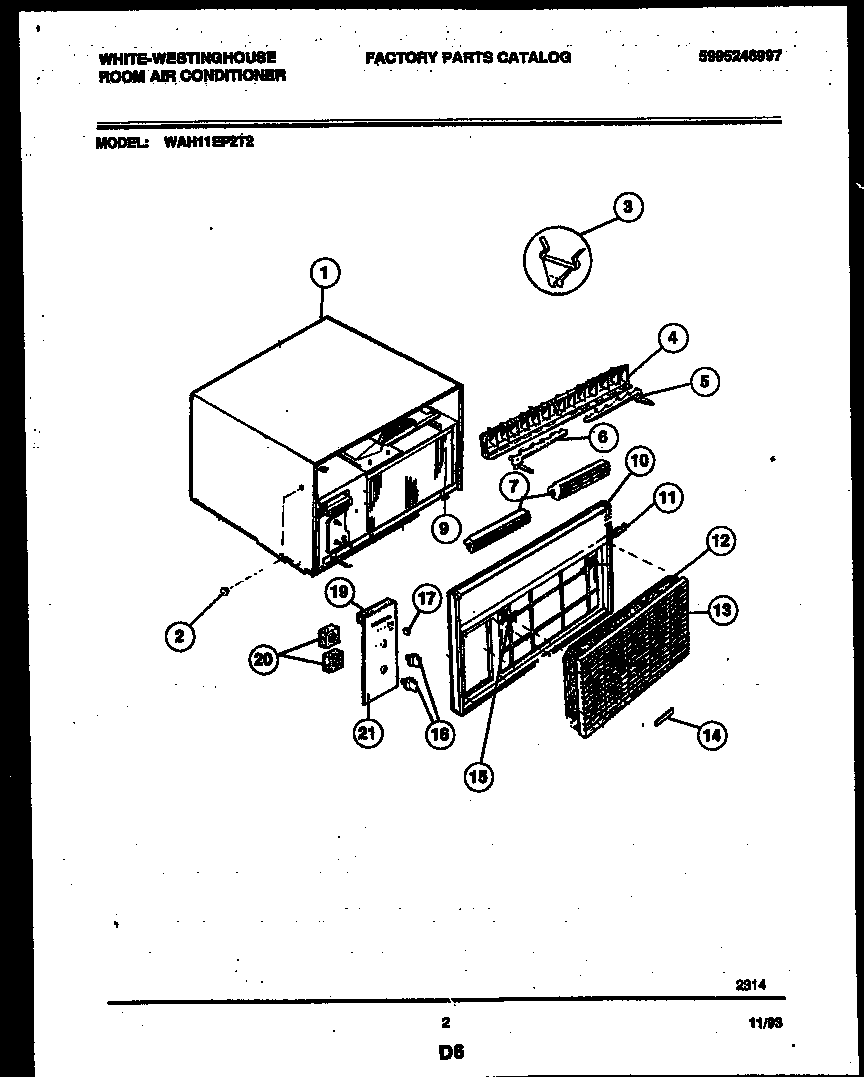

WAH11EP2T2 02 – CABINET PARTS

WAH11EP2T2 02 – CABINET PARTS

Written by

in

WAH11EP2T2 02 – CABINET PARTS

Products

PositionProduct
*82948WCI 5303301037
*82948WCI 5303301036
*82948WCI 5303301035
1WCI 5303301032
1AWCI 5303301025
2WCI 08016091
2ANAMEPLATE-GRILLE (NON-ILLUSTRATED)
3WCI 5303001844
4VERT. LOUVER & LINK ASSY.
5WCI 5303293786
6WCI 5303293787
7FRAME-HORIZONTAL LOUVER
9CLIP-FRONT TO BASE
10FRONT-COMPLETE
11WCI 5300301157
12WCI 5303016859
13WCI 5303210352
14WCI 5300138101
15SCREW-FRONT
16WCI 5300331902
17WCI 5303002189
18SEAL
19WCI 5303001984
20WCI 5303001725
21WCI 5303212755
