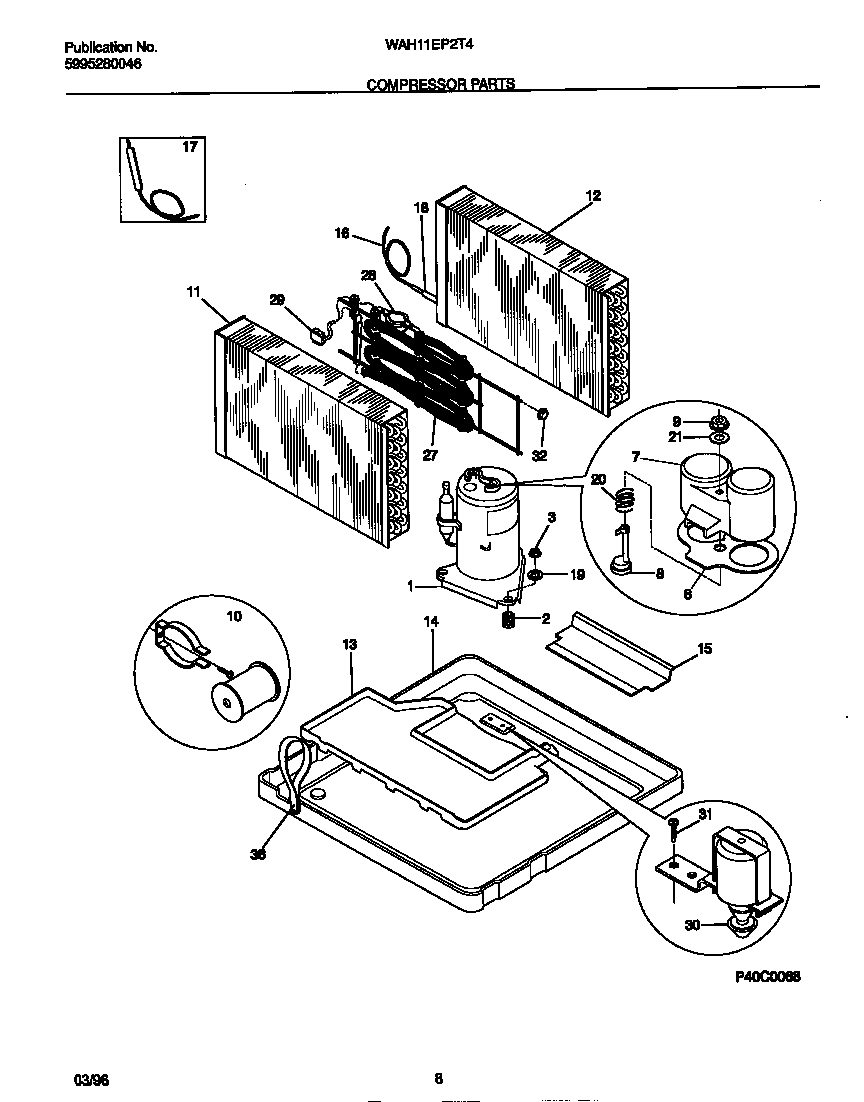

WAH11EP2T4 05 – COMPRESSOR PARTS

Products

Position	Product
1	WCI 5303925297
2	GROMMET,COMPRESSOR MTG ,(3)
3	NUT,COMPRESSOR MTG ,(3)
6	WCI 5303002035
7	COVER-TERMINAL
8	WCI 5303207275
9	WCI 5303301734
10	WCI 5303317601
11	WCI 5303207276
12	WCI 5303207277
13	WCI 5303210203
14	WCI 5303305136
15	HEAT SHIELD EVAP TRAY (NON-ILLUSTRATED)
16	WCI 5308017253
17	5300265301 Frigidaire Air Conditioner P1 Filter Drier
18	WCI 5303290357
19	WASHER,COMPRESSOR MTG
20	SPRING-OVERLOAD
21	WCI 5303295516
27	WCI 5303210241
28	THERMOSTAT-HEATER
29	HARNESS-WIRE HEATER TOP
30	VALVE-DRAIN (NON-ILLUSTRATED)
31	SCREW-DRAIN (2)
32	NUT-HEATER
36	WCI 5303303558
