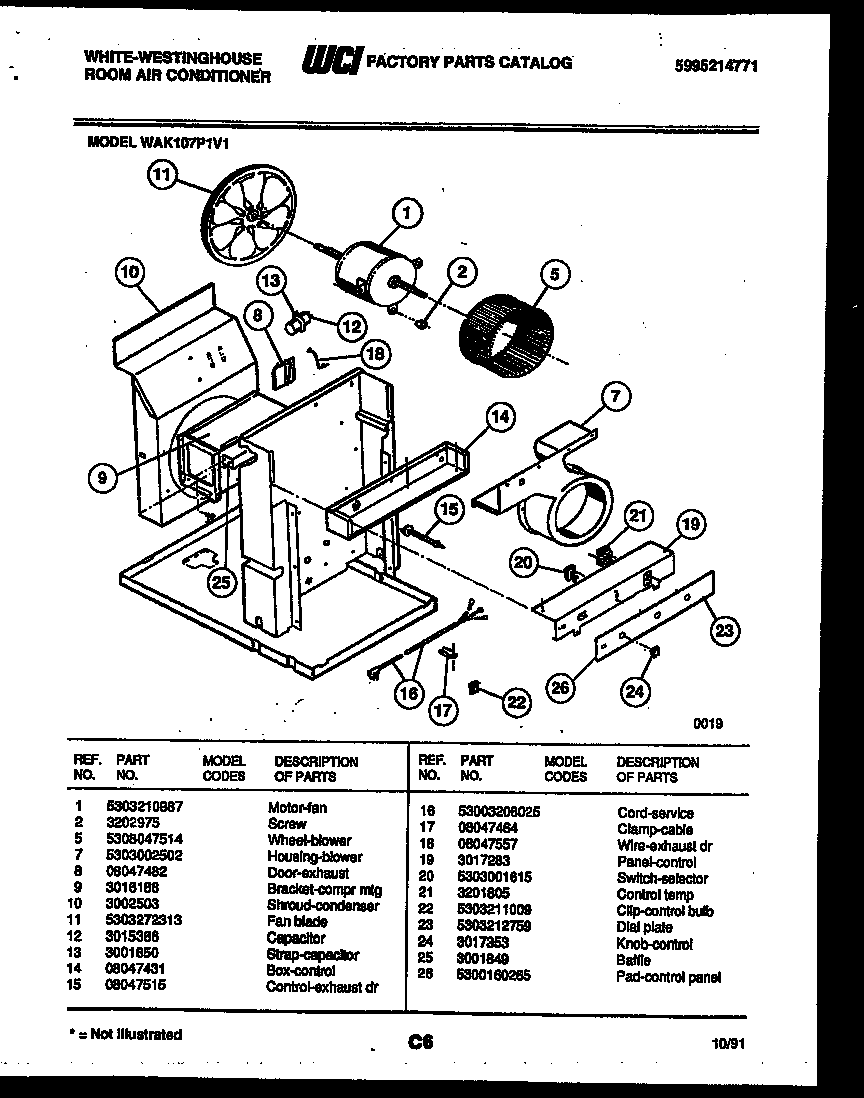

WAK107P1V1 03 – ELECTRICAL AND AIR HANDLING PARTS

WAK107P1V1 03 – ELECTRICAL AND AIR HANDLING PARTS

Written by

in

WAK107P1V1 03 – ELECTRICAL AND AIR HANDLING PARTS

Products

PositionProduct
1WCI 5303210987
2131202300 Frigidaire Screw
5WCI 5308047514
7WCI 5303002502
8WCI 08047482
9BRACKET – COMPRESSOR
10WCI 3002503
11WCI 5303272313
12WCI 3015366
13WCI 3001850
14WCI 08047431
15CONTROL-EXHAUST DR
16WCI 53003208025
17WCI 08047464
18WIRE-EXHAUST DR
19WCI 3017283
20WCI 5303001615
21CONTROL TEMPERATURE
22CLIP-BULB
23WCI 5303212759
24WCI 3017353
25BAFFLE
26WCI 5300160265
