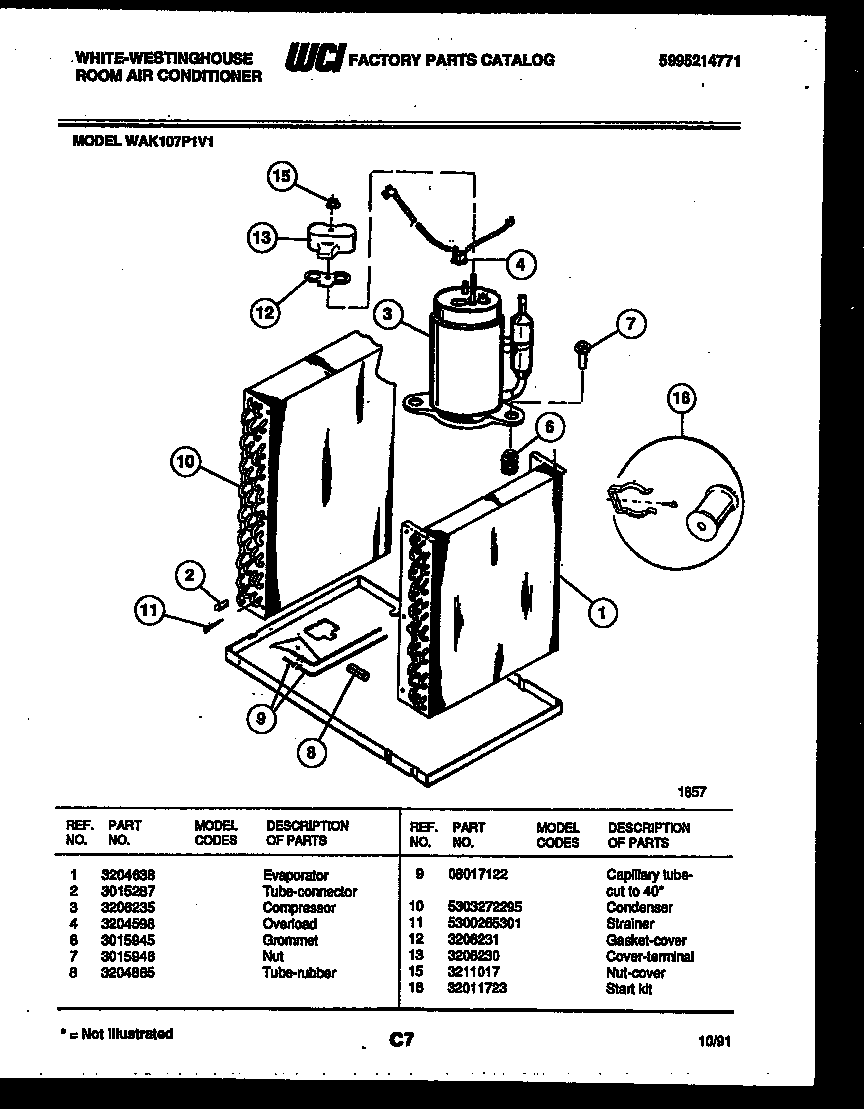

WAK107P1V1 04 – SYSTEM PARTS

Written by

Products

Position	Product
1	WCI 3204638
2	WCI 3015287
3	WCI 3206235
4	WCI 3204598
6	GROMMET
7	NUT
8	WCI 3204865
9	CAPILLARY TUBE (CUT TO 40“)
10	WCI 5303272295
11	5300265301 Frigidaire Air Conditioner P1 Filter Drier
12	GASKET-COVER
13	WCI 3206230
15	WCI 3211017
16	WCI 32011723
