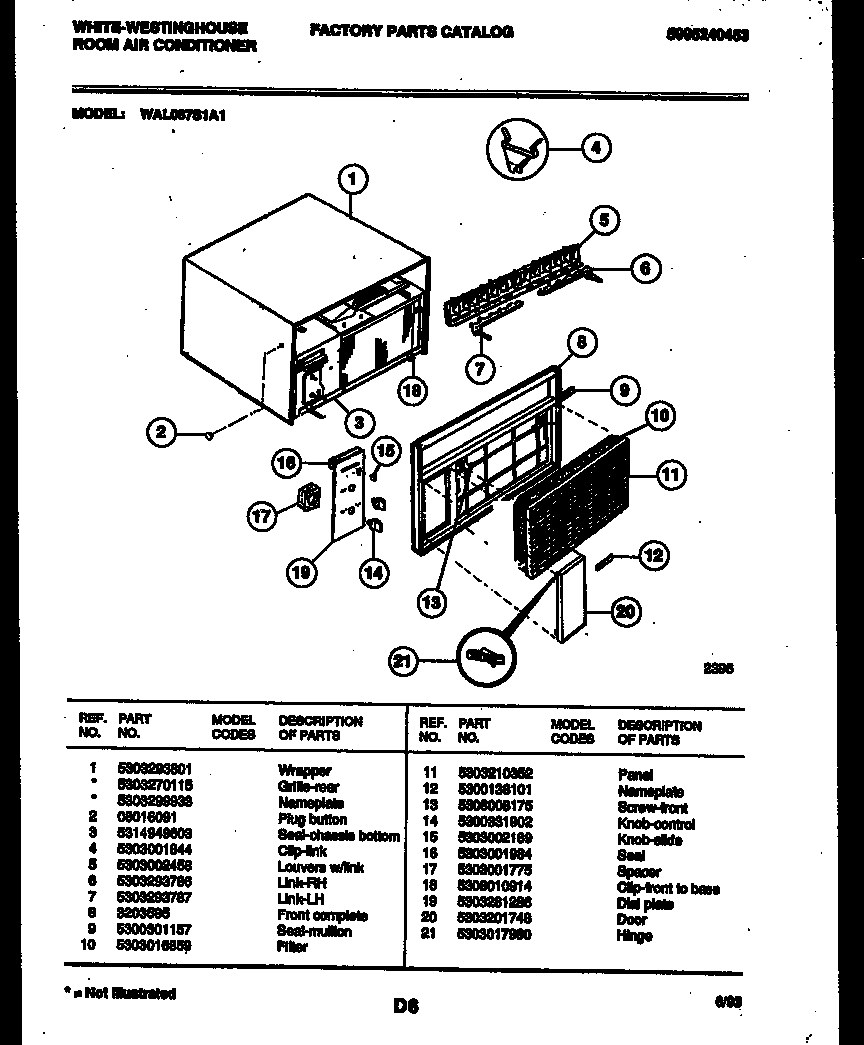

WAL087S1A1 02 – CABINET PARTS

Products

Position	Product
1	WRAPPER (INCLUDES REAR GRILLE)
1A	GRILLE-REAR (NON-ILLUSTRATED)
1B	NAMEPLATE-GRILLE (NON-ILLUSTRATED)
2	WCI 08016091
3	SEAL
4	WCI 5303001844
5	VERT. LOUVER & LINK ASSY.
6	WCI 5303293786
7	WCI 5303293787
8	WCI 3203595
9	WCI 5300301157
10	WCI 5303016859
11	WCI 5303210352
12	WCI 5300138101
13	SCREW-FRONT
14	WCI 5300331902
15	WCI 5303002189
16	WCI 5303001984
17	WCI 5303001775
18	CLIP-FRONT TO BASE
19	WCI 5303281286
20	WCI 5303201748
21	HINGE – DOOR
