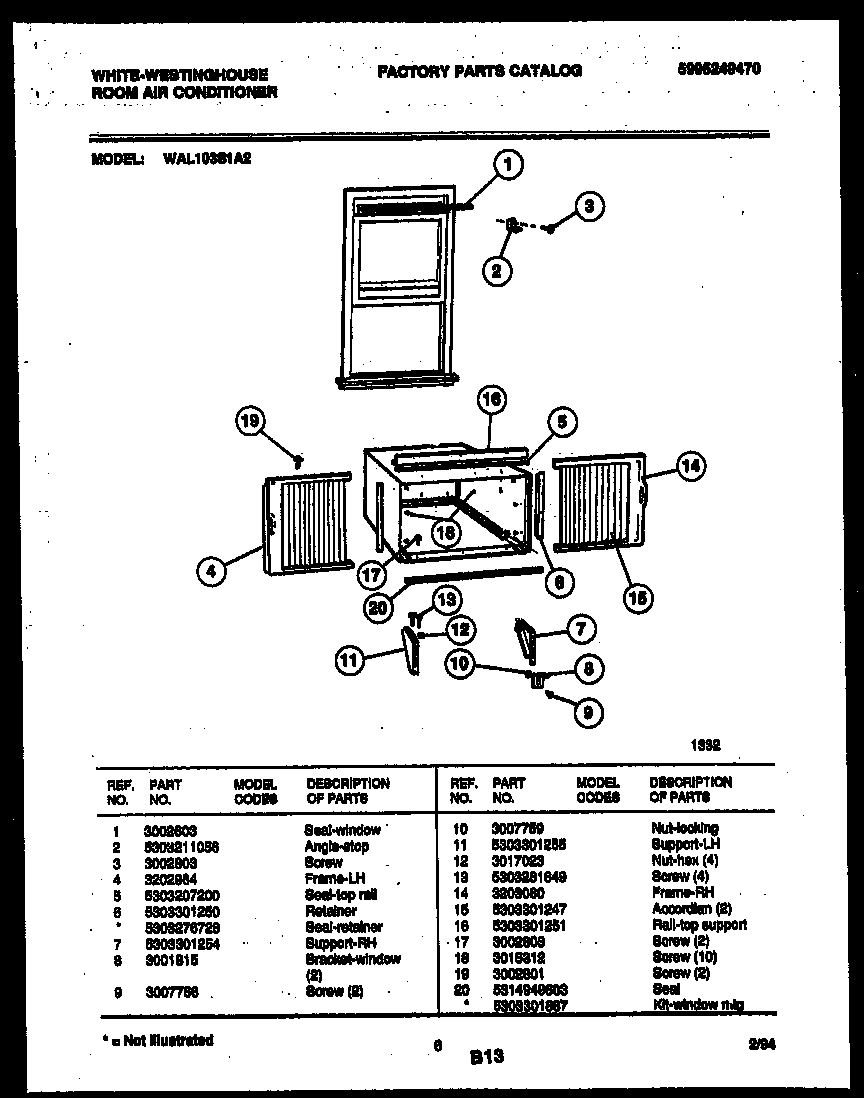

WAL103S1A2 06 – CABINET AND INSTALLATION PARTS

Products

Position	Product
*89174	WCI 5303301887
1	5304407729 Frigidaire Air Conditioner Seal
2	BRACKET
4	WCI 3202964
5	WCI 5303207200
6A	SEAL-RETAINER (NON-ILLUSTRATED)
6	WCI 5303301250
7	WCI 5303301254
8	BRACKET – SUPPORT
9	SCREW – SILL SUPT
10	NUT – BRACKET
11	WCI 5303301255
12	316205500 Frigidaire Oven Nut
13	SCREW – SUPPORT, 4
14	WCI 3203060
15	ACCORDIAN
16	TOP RAIL
17	SCREW-WOOD
18	134178901 Frigidaire Screw
19	WCI 3002801
20	SEAL
