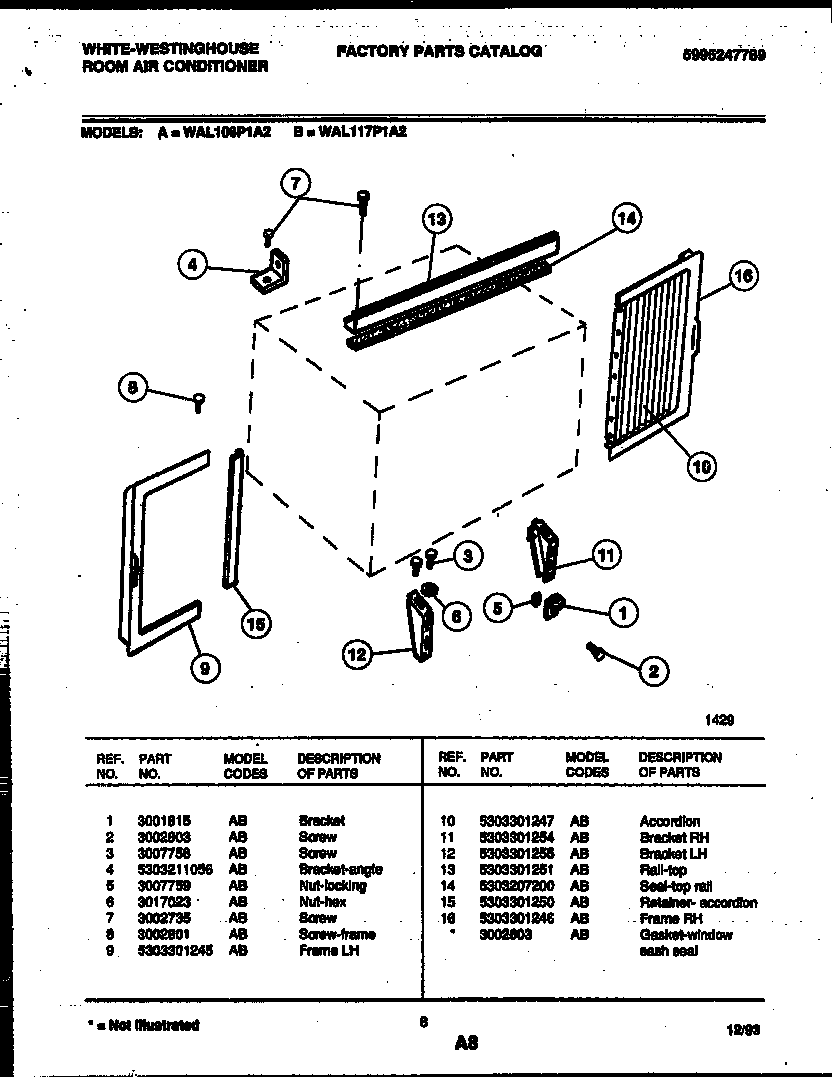

WAL106P1A2 07 – CABINET AND INSTALLATION PARTS

Written by

Products

Position	Product
*84242	5304407729 Frigidaire Air Conditioner Seal
1	BRACKET – SUPPORT
2	SCREW-WOOD
3	SCREW – SILL SUPT
4	BRACKET
5	NUT – BRACKET
6	316205500 Frigidaire Oven Nut
7	WCI 3002735
8	WCI 3002801
9	FRAME EXTENSION LH
10	ACCORDIAN
11	WCI 5303301254
12	WCI 5303301255
13	TOP RAIL
14	WCI 5303207200
15	WCI 5303301250
16	FRAME EXTENSION RH
