WAL122K1A2 03 – CABINET FRONT AND WRAPPER – Aparts

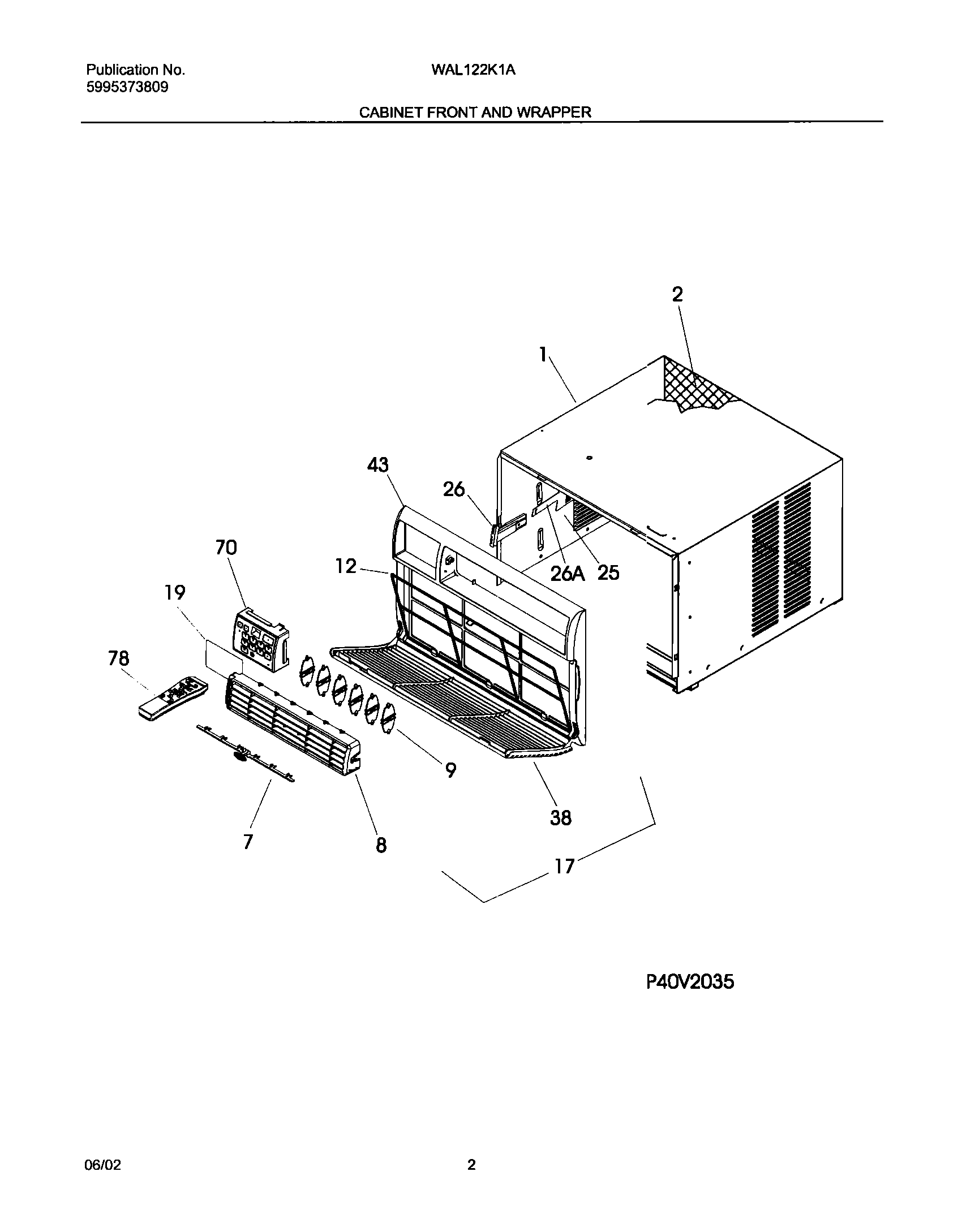

WAL122K1A2 03 – CABINET FRONT AND WRAPPER

Products

Position	Product
NI	WCI 5304415693
NI	HORIZ LOUVER ASSY.
1	WCI 309609210
2	WCI 309632805
7	WCI 309638601
8	+HORIZ.LOUVER
9	WCI 309342001
12	FILTER-NO FRAME 22``T/C
17	FRNT/PNL ASSY COMPL.BRND.22TC
19	WCI 309340906
25	WCI 309328602
26A	WCI 309330201
26	Handle,vent door
38	WCI 309639601
43	FRAME-FRNT
70	Enclosure,elec control mt
78	WCI 309342605
