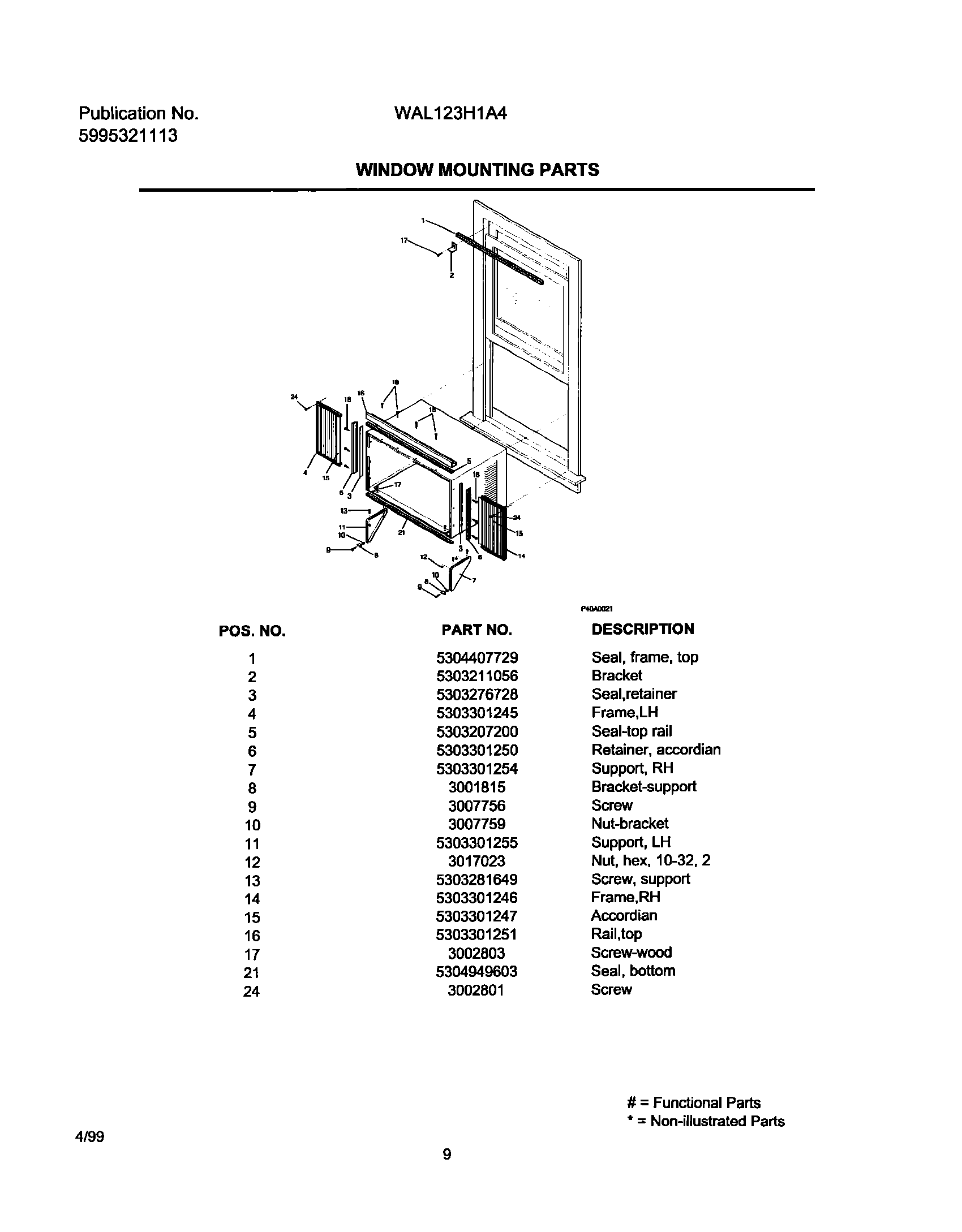

WAL123H1A4 09 – WINDOW MOUNTING PARTS

Products

Position	Product
1	5304407729 Frigidaire Air Conditioner Seal
2	BRACKET
3	SEAL-RETAINER (NON-ILLUSTRATED)
4	FRAME EXTENSION LH
5	WCI 5303207200
6	WCI 5303301250
7	WCI 5303301254
8	BRACKET - SUPPORT
9	SCREW - SILL SUPT
10	NUT - BRACKET
11	WCI 5303301255
12	316205500 Frigidaire Oven Nut
13	SCREW - SUPPORT, 4
14	FRAME EXTENSION RH
15	ACCORDIAN
16	TOP RAIL
17	SCREW-WOOD
21	WCI 5304949603
24	WCI 3002801
