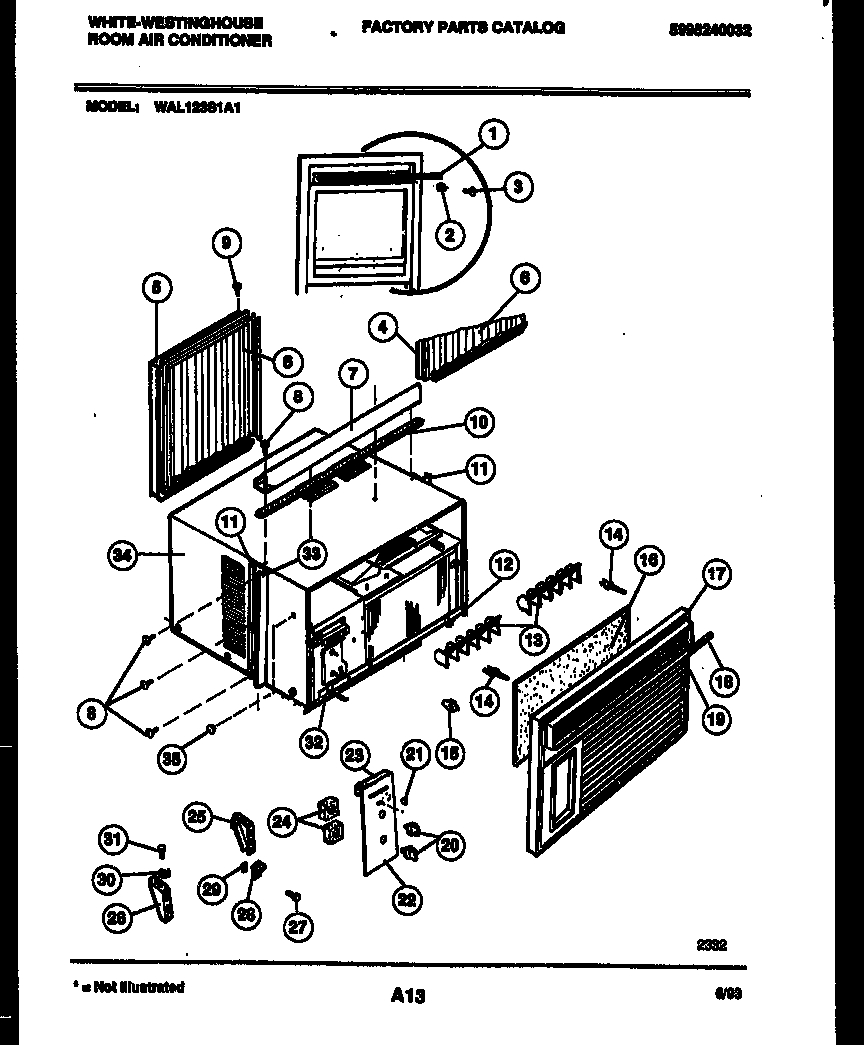

WAL123S1A1 02 – CABINET PARTS

Products

Position	Product
*76101	WCI 5303925121
*76101	NUT – FRONT LOCK
1	5304407729 Frigidaire Air Conditioner Seal
2	WCI 3018951
3	SCREW-WOOD
4	WCI 3203060
5	WCI 3202964
6	WCI 5303211382
7	SUPPORT-TOP
8	134178901 Frigidaire Screw
9	WCI 3002801
10	WCI 5303207200
11	RETAINER, ACCORDION
12	CLIP-FRONT TO BASE
13	WCI 5303276681
13A	WASHER-RUBBER
14	HANDLE-LOUVER
15	INSERT
16	FILTER-AIR
17	WCI 5303300129
18	WCI 5308014101
19	INSERT-MULLION
20	WCI 5300331902
21	WCI 5303002189
22	WCI 5303289079
23	WCI 5303001984
24	WCI 5303001775
25	SUPPORT-RH
26	SUPPORT-LH
27	SCREW – SILL SUPT
28	BRACKET – SUPPORT
29	NUT – BRACKET
30	316205500 Frigidaire Oven Nut
31	SCREW – SUPPORT, 4
32	SEAL
33	SEAL-RETAINER (NON-ILLUSTRATED)
34	WRAPPER (INCLUDES REAR GRILLE)
34A	WCI 5303293393
34B	NAMEPLATE-GRILLE (NON-ILLUSTRATED)
35	SCREW
