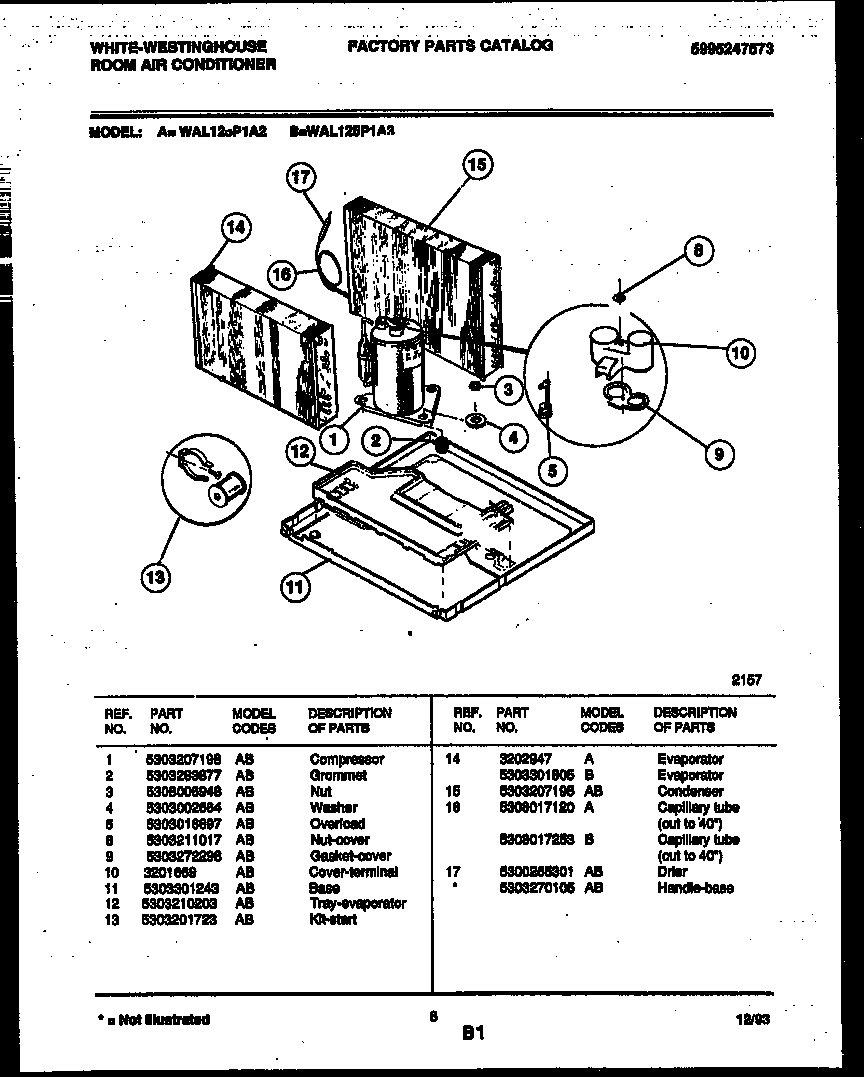

WAL125P1A2 05 – SYSTEM PARTS

Products

Position	Product
*84325	HANDLE-BASE
1	WCI 5303207198
2	GROMMET,COMPRESSOR MTG ,(3)
3	NUT,COMPRESSOR MTG ,(3)
4	WASHER,COMPRESSOR MTG
5	OVERLOAD PROTECTOR
8	WCI 5303211017
9	GASKET-COVER
10	WCI 3201669
11	WCI 5303301243
12	WCI 5303210203
13	STARTER KIT
14	WCI 3202947
15	WCI 5303207195
16	Capillary Tube,45 inch long ,cut to length
17	5300265301 Frigidaire Air Conditioner P1 Filter Drier
