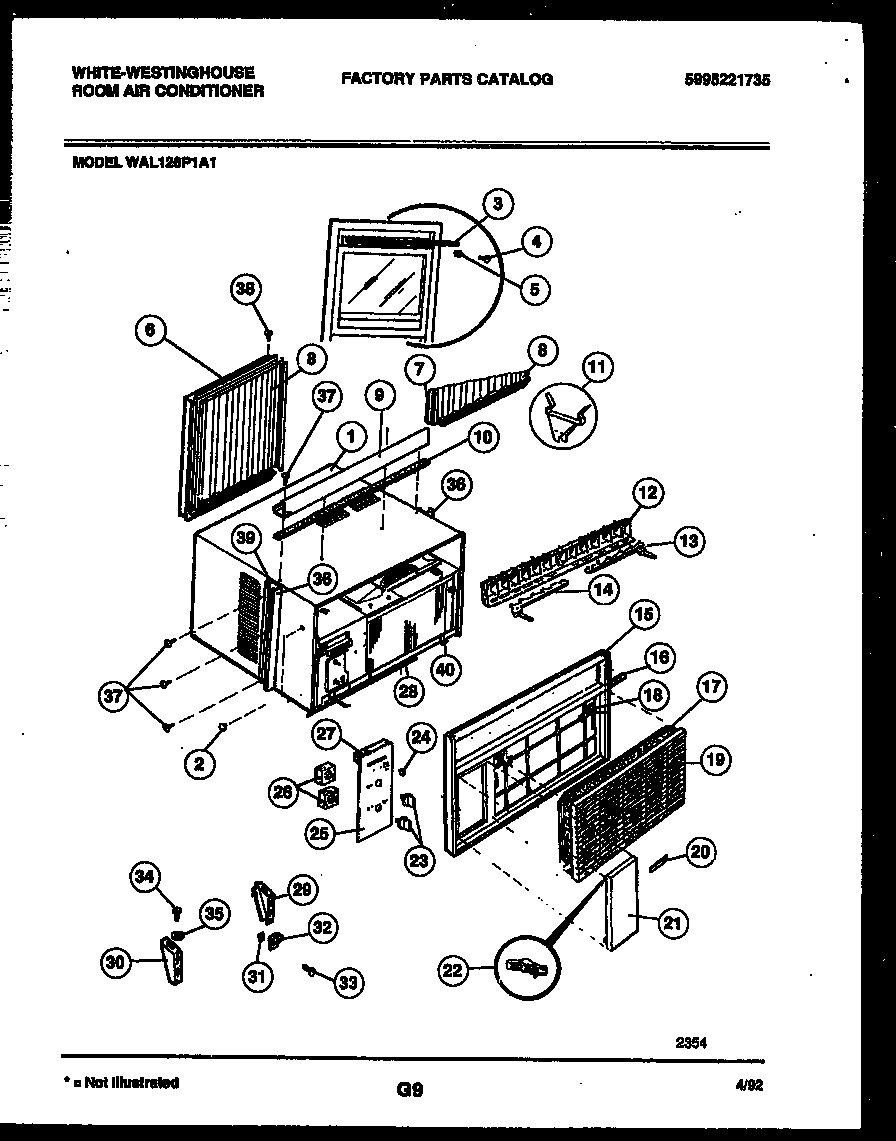

WAL126P1A1 02 – CABINET PARTS

Products

Position	Product
1B	NAMEPLATE-GRILLE (NON-ILLUSTRATED)
1A	WCI 5303210207
1	WCI 5303271901
2	PLUG BTN
3	5304407729 Frigidaire Air Conditioner Seal
4	BRACKET
5	SCREW-WOOD
6	WCI 3202964
7	WCI 3203060
8	WCI 5303211382
9	SUPPORT-TOP
10	WCI 5303207200
11	WCI 5303001844
12	VERT. LOUVER & LINK ASSY.
13	LINK – VERT LOUVER RH
14	LINK VERTICAL LOUVER LH
15	WCI 3203595
16	WCI 5300301157
17	FILTER-AIR
18	SCREW-FRONT
19	WCI 5303210352
20	WCI 5300138101
21	WCI 5303201748
22	HINGE – DOOR
23	WCI 5300331902
24	WCI 5303002189
25	WCI 5303281286
26	WCI 5303001775
27	WCI 5303001984
28	SEAL
29	SUPPORT-RH
30	SUPPORT-LH
31	NUT – BRACKET
32	BRACKET – SUPPORT
33	SCREW – SILL SUPT
34	SCREW – SUPPORT, 4
35	316205500 Frigidaire Oven Nut
36	RETAINER, ACCORDION
37	134178901 Frigidaire Screw
38	WCI 3002801
39	SEAL-RETAINER (NON-ILLUSTRATED)
40	CLIP-FRONT TO BASE
