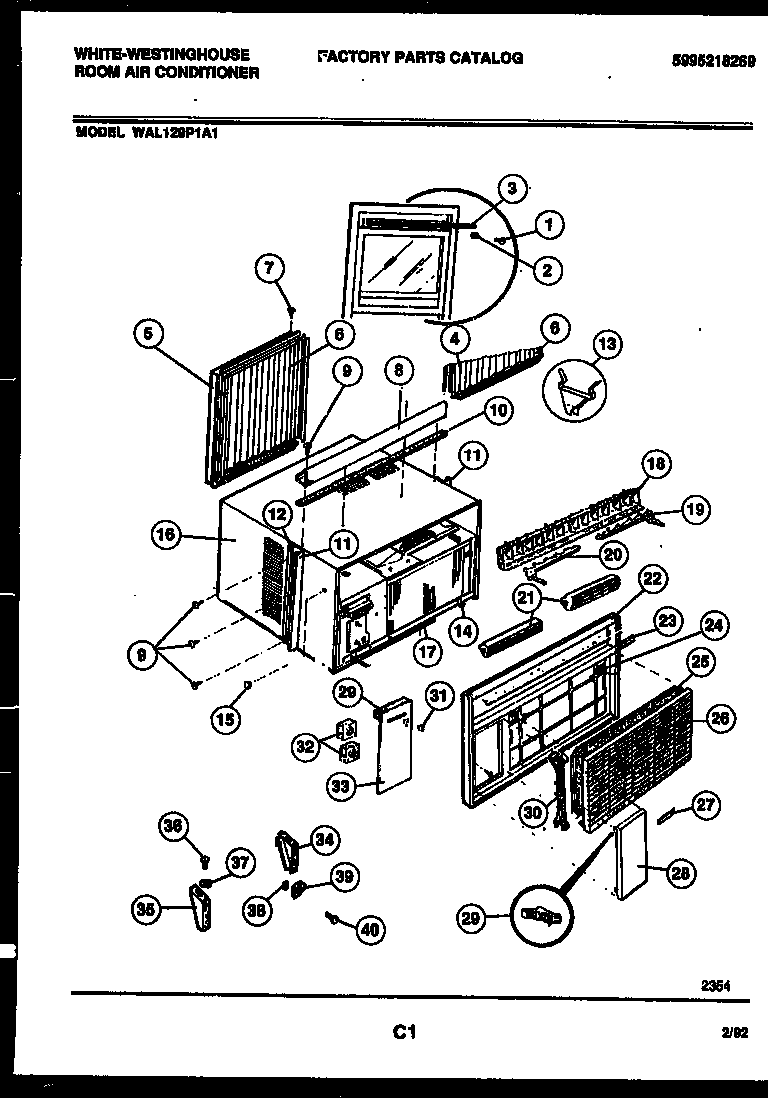

WAL129P1A1 02 – CABINET PARTS

Products

Position	Product
1	BRACKET
2	WCI 3002735
3	5304407729 Frigidaire Air Conditioner Seal
4	WCI 3203060
5	WCI 3202964
6	WCI 5303211382
7	WCI 3002801
8	SUPPORT-TOP
9	134178901 Frigidaire Screw
10	WCI 5303207200
11	RETAINER, ACCORDION
12	SEAL-RETAINER (NON-ILLUSTRATED)
13	WCI 5303001844
14	CLIP-FRONT TO BASE
15	PLUG BTN
16	WCI 5303271901
16A	WCI 5303210207
16B	NAMEPLATE-GRILLE (NON-ILLUSTRATED)
17	SEAL
18	VERT. LOUVER & LINK ASSY.
19	LINK – VERT LOUVER RH
20	LINK VERTICAL LOUVER LH
21	FRAME-HORIZONTAL LOUVER
22	WCI 3203595
23	WCI 5303001157
24	SCREW-FRONT
25	FILTER-AIR
26	WCI 5300454703
27	WCI 5300138101
28	WCI 5303201645
29	HINGE – DOOR
30	TRACK-FILTER (NON-ILLUSTRATED)
31	WCI 5303002189
32	SEAL-DIAL PLATE
33	WCI 5303284620
34	WCI 3016224
35	WCI 3016225
36	SCREW – SILL SUPT
37	316205500 Frigidaire Oven Nut
38	NUT – BRACKET
39	BRACKET – SUPPORT
40	SCREW-WOOD
