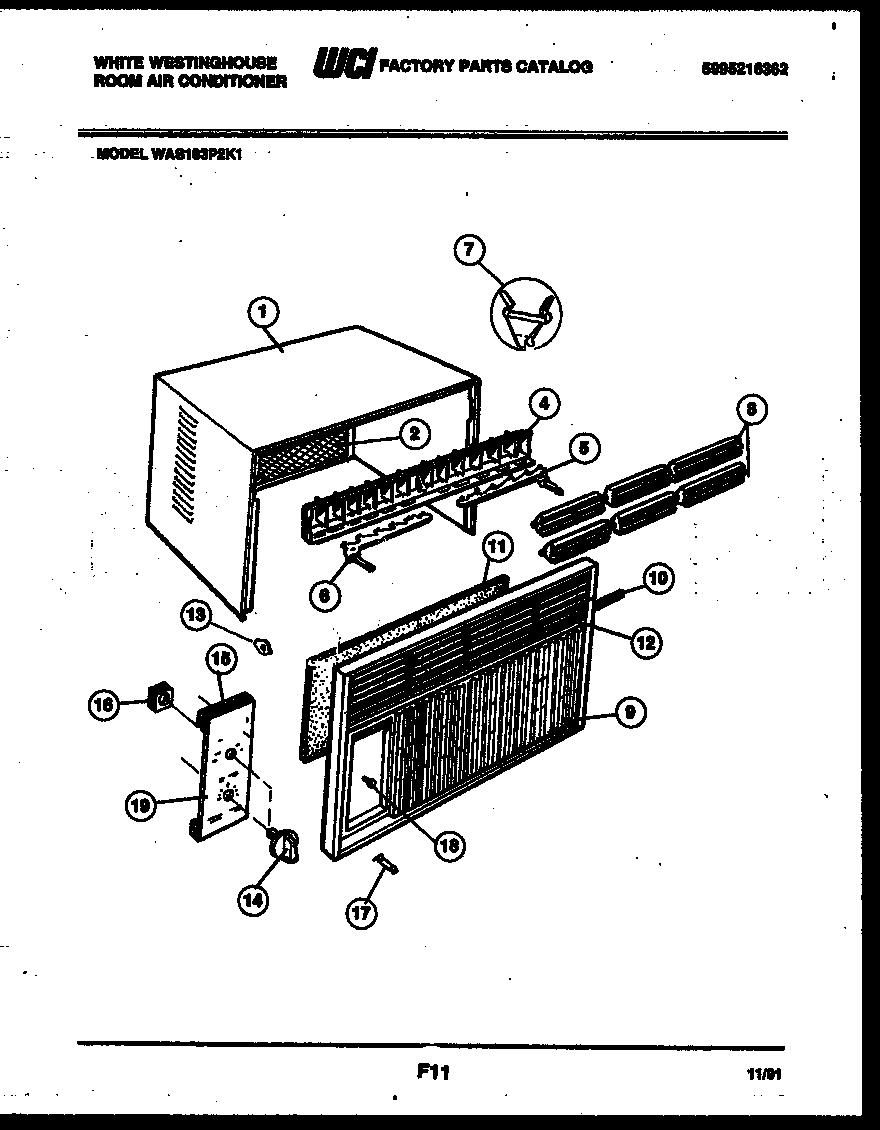

WAS183P2K1 02 – CABINET PARTS

Products

Position	Product
1	SHELL-CABINET
2	WCI 5303210207
2A	NAMEPLATE-GRILLE (NON-ILLUSTRATED)
4	WCI 5303002459
5	LINK-VERT LOUVER RH
6	LINK-VERT LOUVER LH
7	WCI 5303001844
8	FRAME-HORIZ. LOUVER
9	WCI 5303283759
10	WCI 08017353
10A	SEAL-EVAP OUTLET (NON-ILLUSTRATED)
11	WCI 5303014139
12	WCI 5303283760
13	INSERT
14	WCI 5300331902
15	WCI 5303001984
16	WCI 5303001775
17	CLIP-FRONT TO BASE
18	SCREW
19	WCI 5303283761
