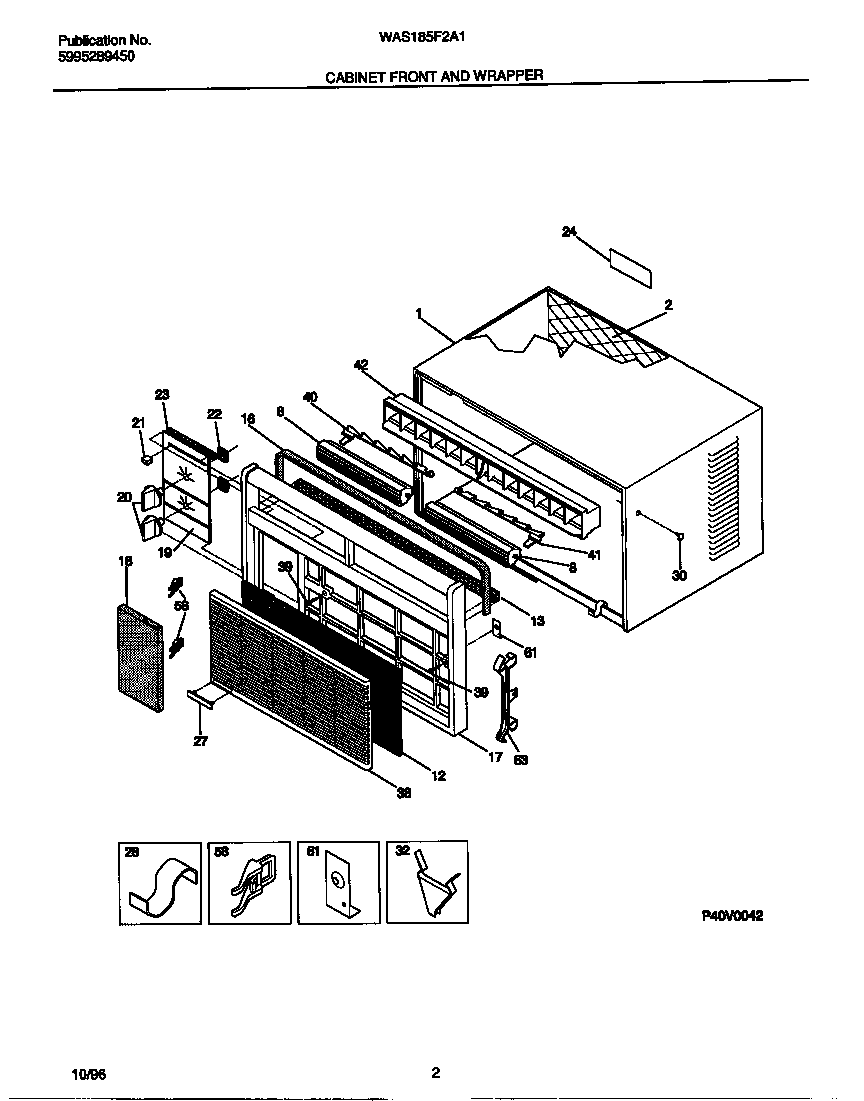

WAS185F2A1 02 – CABINET FRONT AND WRAPPER

WAS185F2A1 02 – CABINET FRONT AND WRAPPER

Written by

in

WAS185F2A1 02 – CABINET FRONT AND WRAPPER

Products

PositionProduct
1WCI 5303301790
2WCI 5303210207
7WCI 5308016109
8FRAME-HORIZ. LOUVER
12WCI 5303309920
13WCI 08017131
16SEAL-EVAP OUTLET (NON-ILLUSTRATED)
17WCI 309611004
18WCI 3202502
19WCI 309618001
20WCI 5300331902
21WCI 5303002189
22WCI 5303001775
23WCI 5303001984
24WCI 5300138101
27WCI 309100803
28CLIP-FRONT TO BASE
30WCI 08016091
32WCI 5303001844
38WCI 5300454403
39134178901 Frigidaire Screw
40WCI 309321803
41WCI 309321804
42WCI 5303002459
58HINGE – DOOR
61WCI 5303016223
63WCI 5300345801
