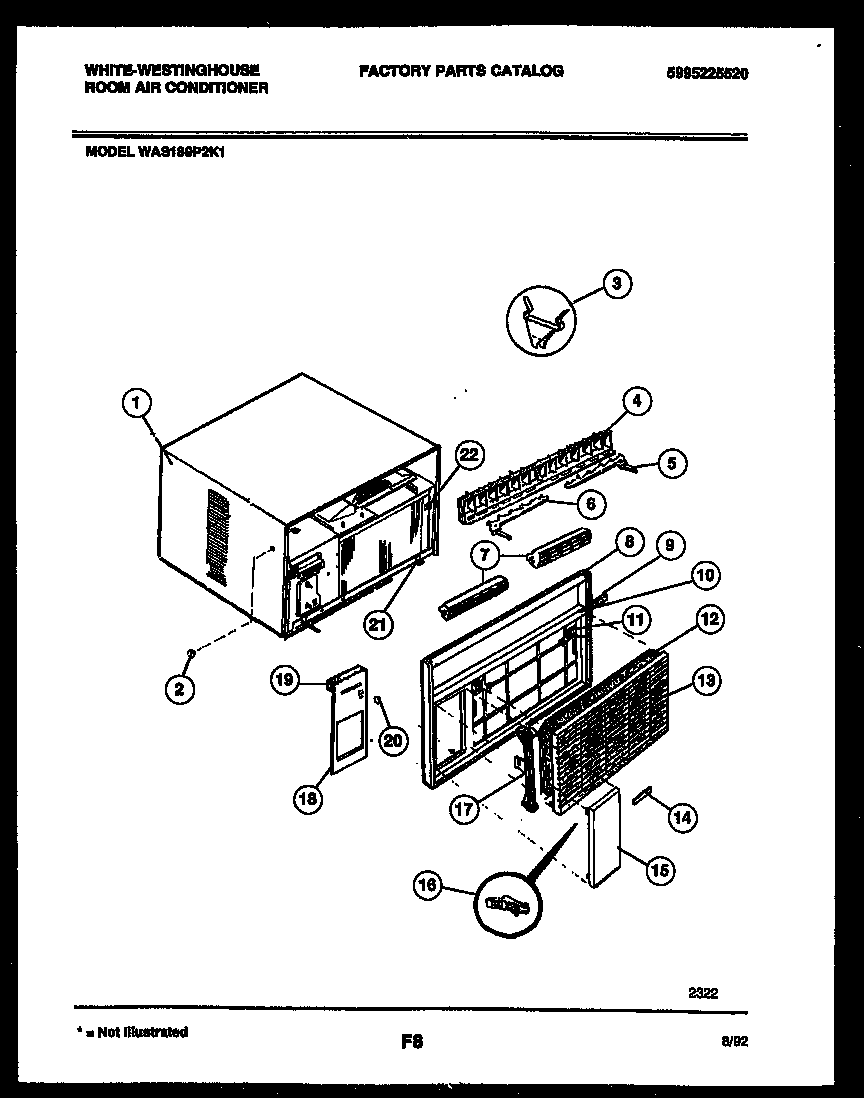

WAS189P2K1 02 – CABINET PARTS

WAS189P2K1 02 – CABINET PARTS

Written by

in

WAS189P2K1 02 – CABINET PARTS

Products

PositionProduct
1SHELL-CABINET
2BNAMEPLATE-GRILLE (NON-ILLUSTRATED)
2AWCI 5303210207
2PLUG BTN
3WCI 5303001844
4WCI 5303002459
5LINK-VERT LOUVER RH
6LINK-VERT LOUVER LH
7FRAME-HORIZ. LOUVER
8WCI 5303016700
9WCI 08017131
10WCI 5300344903
11SCREW-FRONT
12FILTER-FRAMED
13WCI 5300454403
14WCI 5300138101
15DOOR-FRONT
16HINGE – DOOR
17WCI 5300345801
18WCI 5303279466
19SEAL-SPACER DIAL
20WCI 5303002189
21CLIP-FRONT TO BASE
22WCI 5303016223
