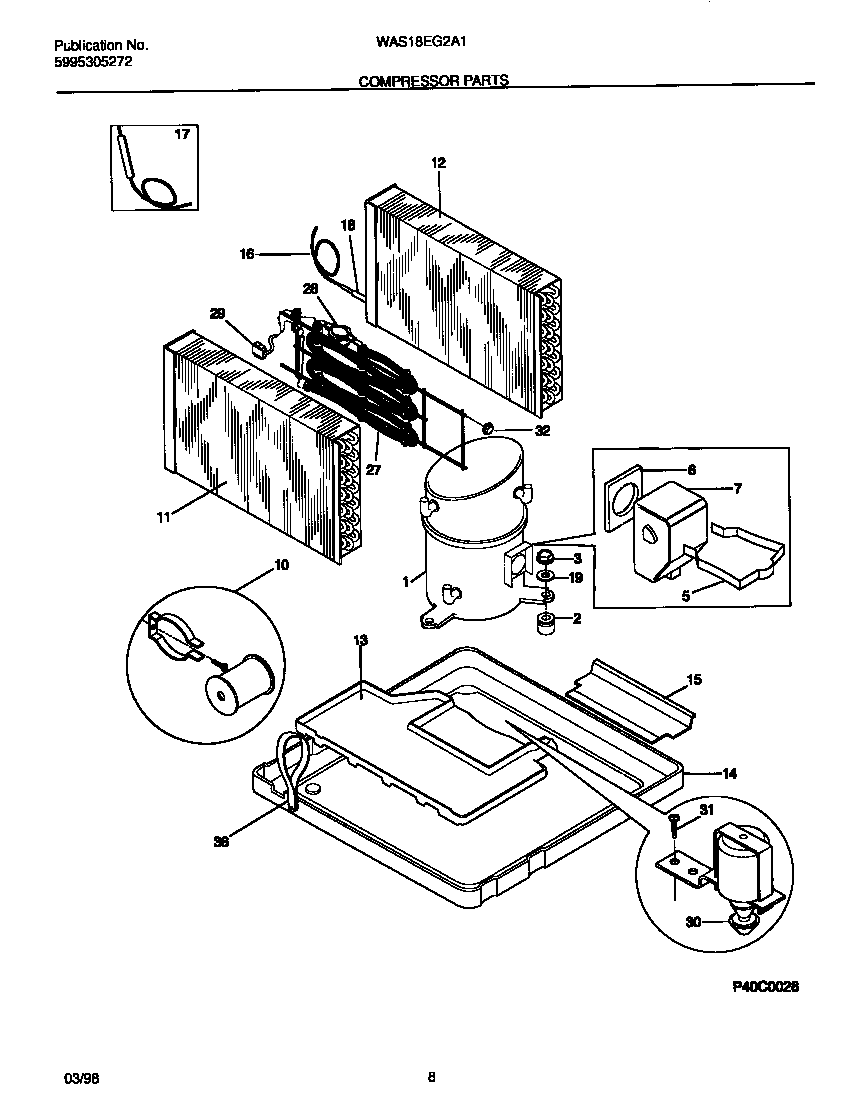

WAS18EG2A1 05 – COMPRESSOR PARTS

Products

Position	Product
1	WCI 5303306716
2	GROMMET - COMPRESSOR, 3
3	NUT,COMPRESSOR MTG ,(3)
5	CLAMP - COVER
6	WCI 5303002068
7	COVER, TERMINAL
10	STARTER KIT
11	WCI 5303306711
12	WCI 5303306719
13	TRAY EVAP
15	SHIELD-HEATER EVAP TRAY
16	CAPILLARY TUBE
17	5300265301 Frigidaire Air Conditioner P1 Filter Drier
18	WCI 5303290357
19	WASHER,COMPRESSOR MTG
27	WCI 5303018573
28	THERMOSTAT-HEATER
29	HARNESS-WIRE HEATER TOP
30	VALVE-DRAIN (NON-ILLUSTRATED)
31	SCREW-DRAIN (2)
32	NUT-HEATER
36	WCI 5303303558
