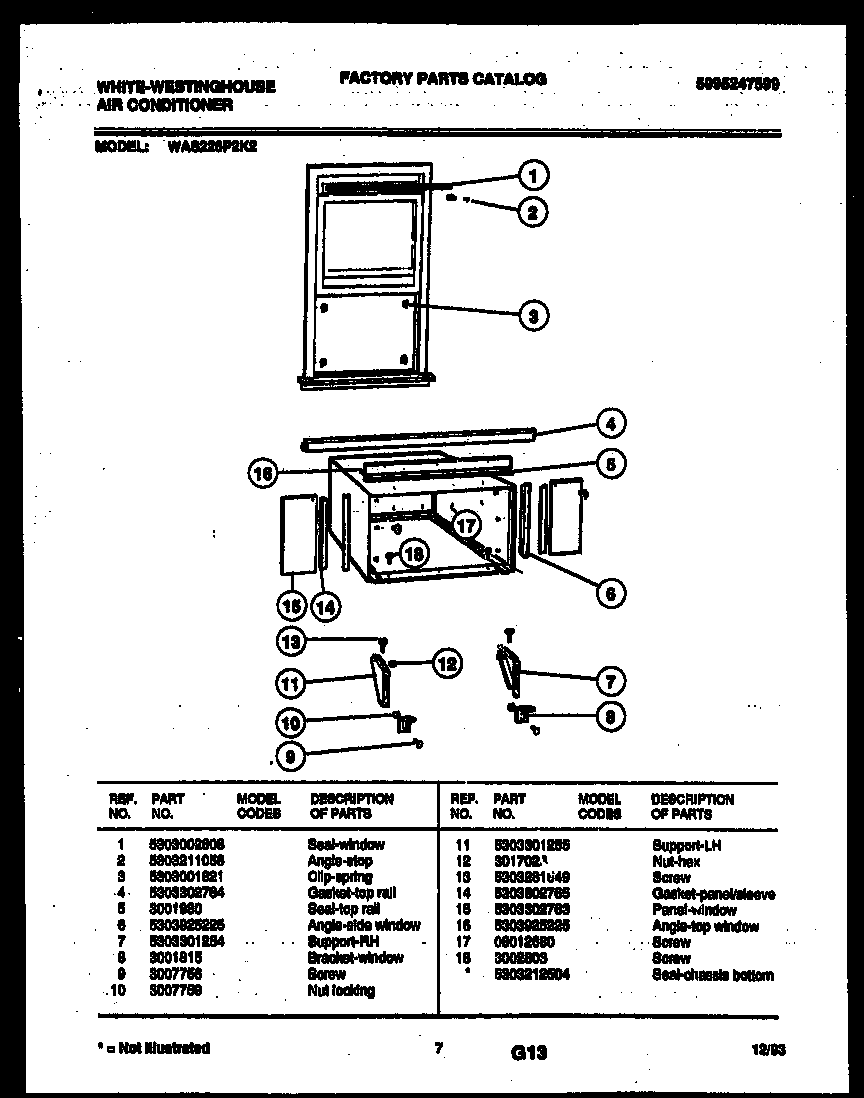

WAS226P2K2 06 – CABINET AND INSTALLATION PARTS

WAS226P2K2 06 – CABINET AND INSTALLATION PARTS

Written by

in

WAS226P2K2 06 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
*84165SEAL-BOTTOM
1WCI 5303002608
2BRACKET
3CLIP-SPRING
4WCI 5303302764
5WCI 3001980
7WCI 5303301254
8BRACKET – SUPPORT
9SCREW – SILL SUPT
10NUT – BRACKET
11WCI 5303301255
12316205500 Frigidaire Oven Nut
13SCREW – SUPPORT, 4
14GASKET-PANEL
15WCI 5303302763
16WCI 5303925225
17WCI 08012680
18SCREW-WOOD
