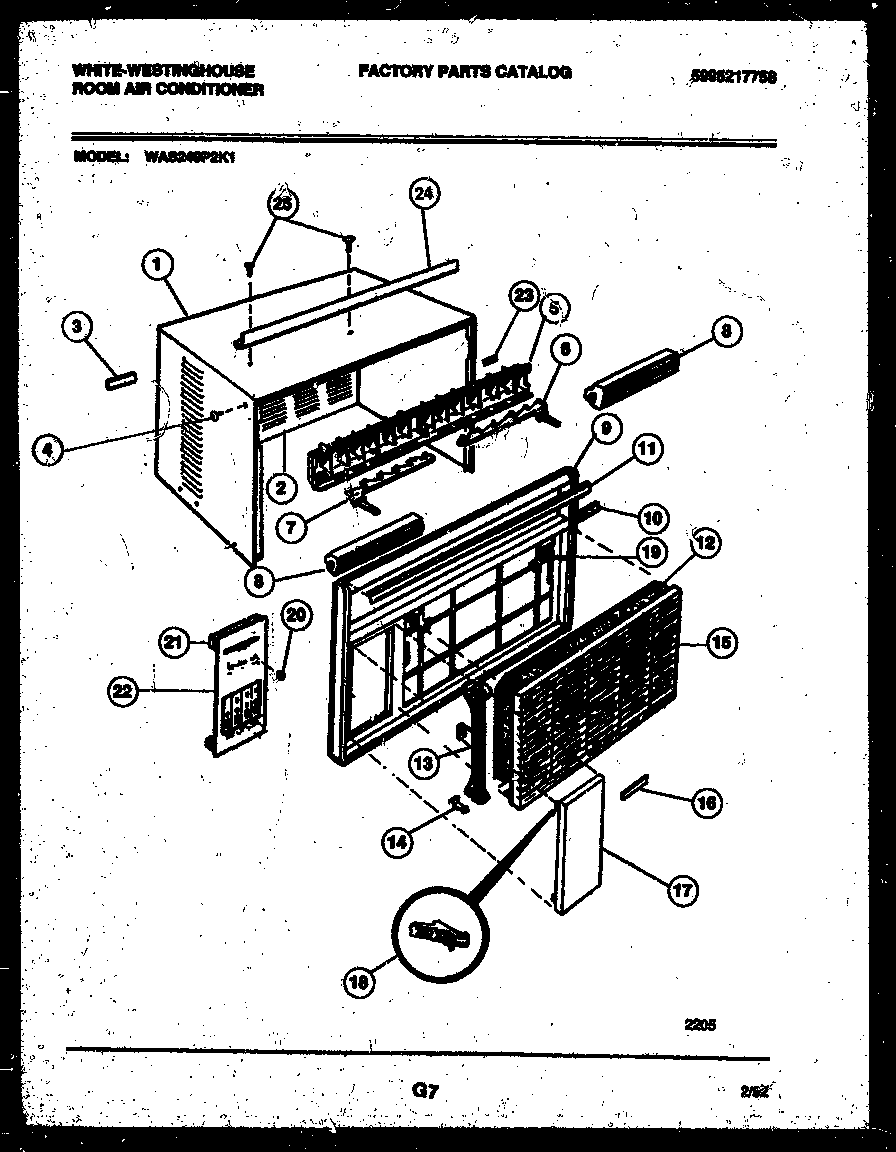

WAS249P2K1 02 – CABINET PARTS

Products

Position	Product
*59713	WCI 5303002189
1	SHELL-CABINET
2	WCI 5303210207
3	NAMEPLATE-GRILLE (NON-ILLUSTRATED)
4	PLUG BTN
5	WCI 5303002459
6	LINK-VERT LOUVER RH
7	LINK-VERT LOUVER LH
8	FRAME-HORIZ. LOUVER
9	WCI 5303016700
10	WCI 08017131
11	WCI 5300344903
11A	SEAL-EVAP OUTLET (NON-ILLUSTRATED)
12	FILTER-FRAMED
13	WCI 5300345801
14	CLIP-FRONT TO BASE
15	WCI 5300454403
16	WCI 5300138101
17	DOOR-FRONT
18	HINGE – DOOR
19	SCREW-FRONT
21	SEAL-SPACER DIAL
22	WCI 5303279466
23	WCI 5303016223
24	WCI 3002508
25	WCI 08012680
