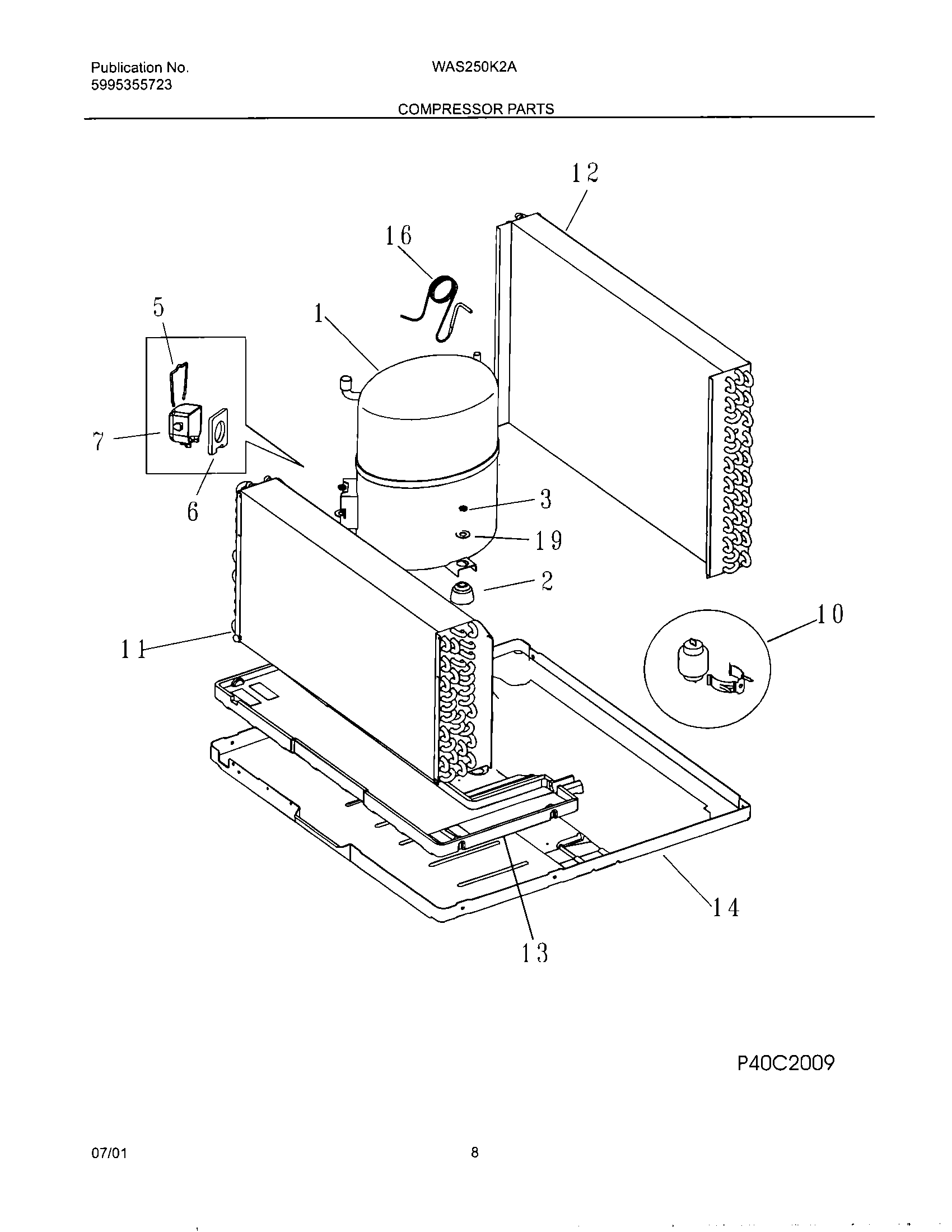

WAS250K2A1 09 – COMPRESSOR PARTS

WAS250K2A1 09 – COMPRESSOR PARTS

Written by

in

WAS250K2A1 09 – COMPRESSOR PARTS

Products

Position	Product
NI	WCI 309112501
1	Compressor
2	GROMMET – COMPRESSOR, 3
3	NUT,COMPRESSOR MTG ,(3)
5	CLAMP – COVER
6	WCI 5303002068
7	COVER, TERMINAL
11	WCI 309634201
12	WCI 5303306719
13	WCI 309623501
14	WCI 309632906
19	WASHER,COMPRESSOR MTG
