WAV157S1A4 06 – WINDOW MOUNTING PARTS – Aparts

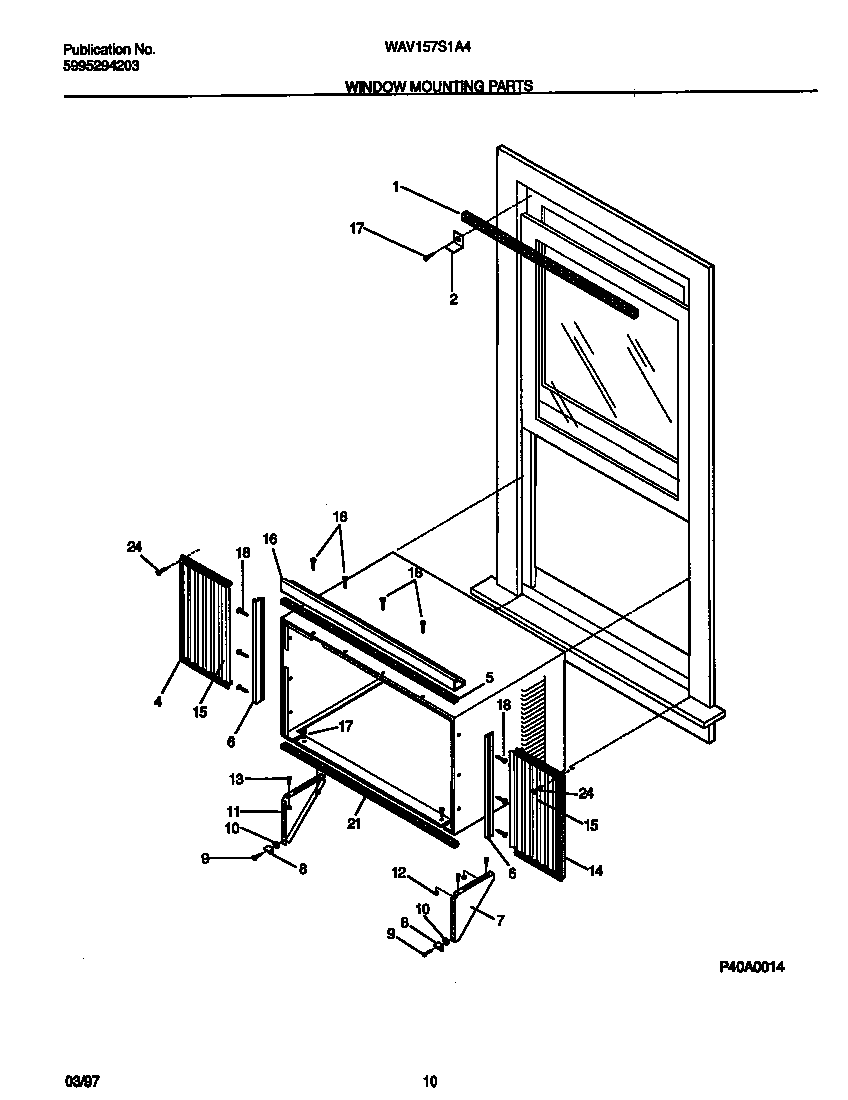

WAV157S1A4 06 – WINDOW MOUNTING PARTS

Products

Position	Product
*01480	WCI 309000906
*01481	WCI 5303301888
1	WCI 5303002608
2	BRACKET
4	WCI 5303302304
5	WCI 3001980
6	WCI 5303301765
7	WCI 5303301254
8	BRACKET - SUPPORT
9	SCREW - SILL SUPT
10	NUT - BRACKET
11	WCI 5303301255
12	316205500 Frigidaire Oven Nut
13	SCREW - SUPPORT, 4
14	WCI 5303302305
15	WCI 5303302306
16	WCI 5303301777
17	SCREW-WOOD
18	WCI 08012680
21	SEAL-BOTTOM
24	WCI 3002801
