WBC31002 01 – SECTION

Products

Position	Product
	WP308544 Whirlpool Screw
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	3184020 Whirlpool Oven Wire
	WPL LIT3189269
	Har
	Conduit Assy
	WPL LIT4454671
	Wire (14 Ga. 150 c Orange)
	WPL LIT4454652
	Wire (14 Ga. 150 c Brown)
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	8528351 Whirlpool Clip
	Wire (14 Ga. 150 c Green)
	16515 Whirlpool Clip
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Blue)

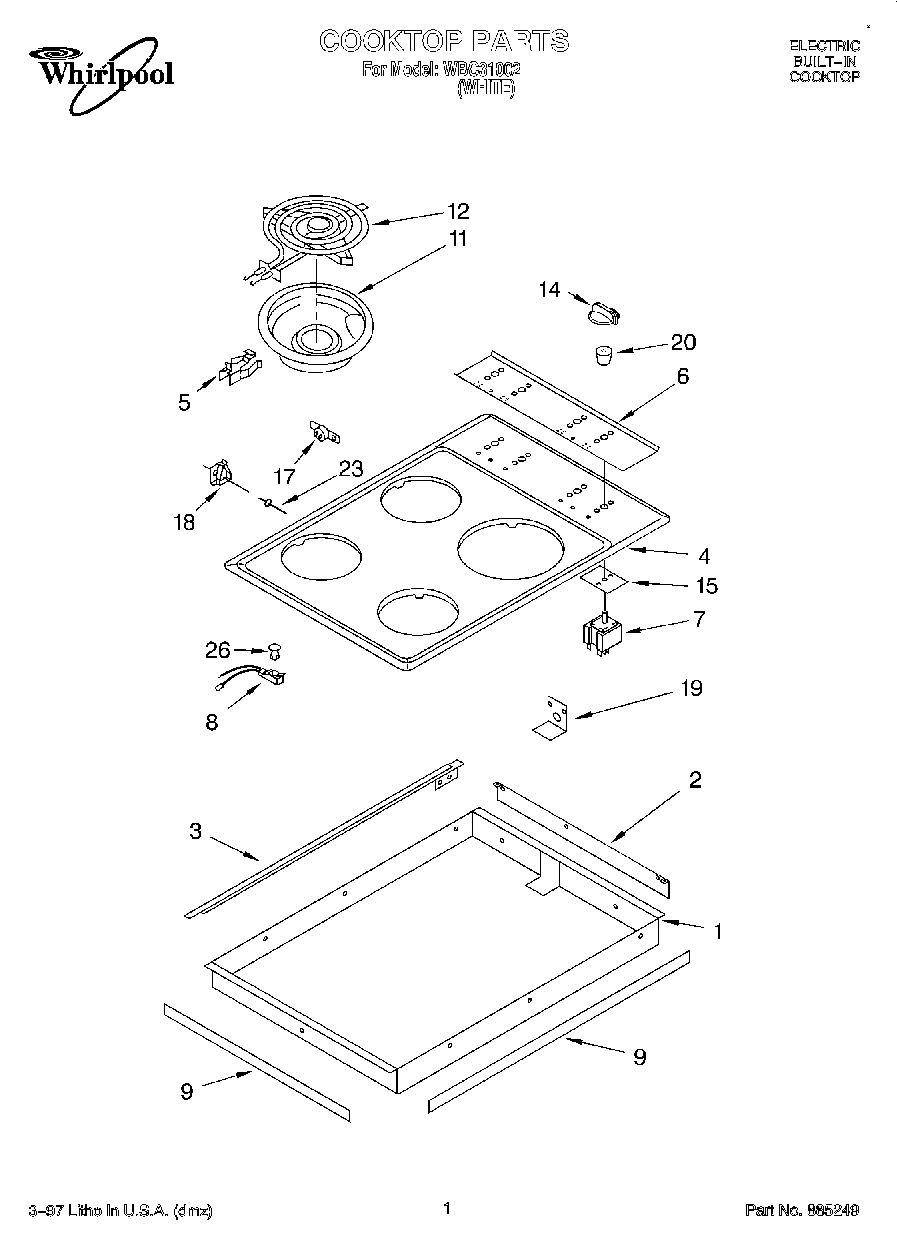

	Hardware Asm.
1	Burner Box
2	Shield, Heat
3	Bracket, Mounting
3	Bracket, Mounting
4	Cooktop (White)
5	WP4332752 Whirlpool Clip
6	Panel, Control
7	WP486579 Whirlpool Air Conditioner Screw
7	Switch, Infinite (Use W/8“ Surface Unit)
7	Switch, Infinite (Use W/6“ Surface Unit)
8	Indicator Light
9	Seal, Silicone (Front & Back (2))
9	Seal, Silicone (Sides (2))
11	Pan, Surface (6“ Pan (Gray))
11	Pan, Surface (8“ Pan (Gray))
12	WP660532 Whirlpool Oven Surface Element
12	WP660533 Whirlpool Oven 8" Surface Element
14	WP9750372FW Whirlpool Knob Assembly
15	3183956 Whirlpool Oven Seal Switch
17	Screw
17	WP3188286 Whirlpool Thermostat
19	Screw (6)
19	Cover, Conduit
19	Screw, 10-32 x 3/8
20	Seal, Switch Shaft (2)
23	814103 Whirlpool Clip
26	Lens, Light
