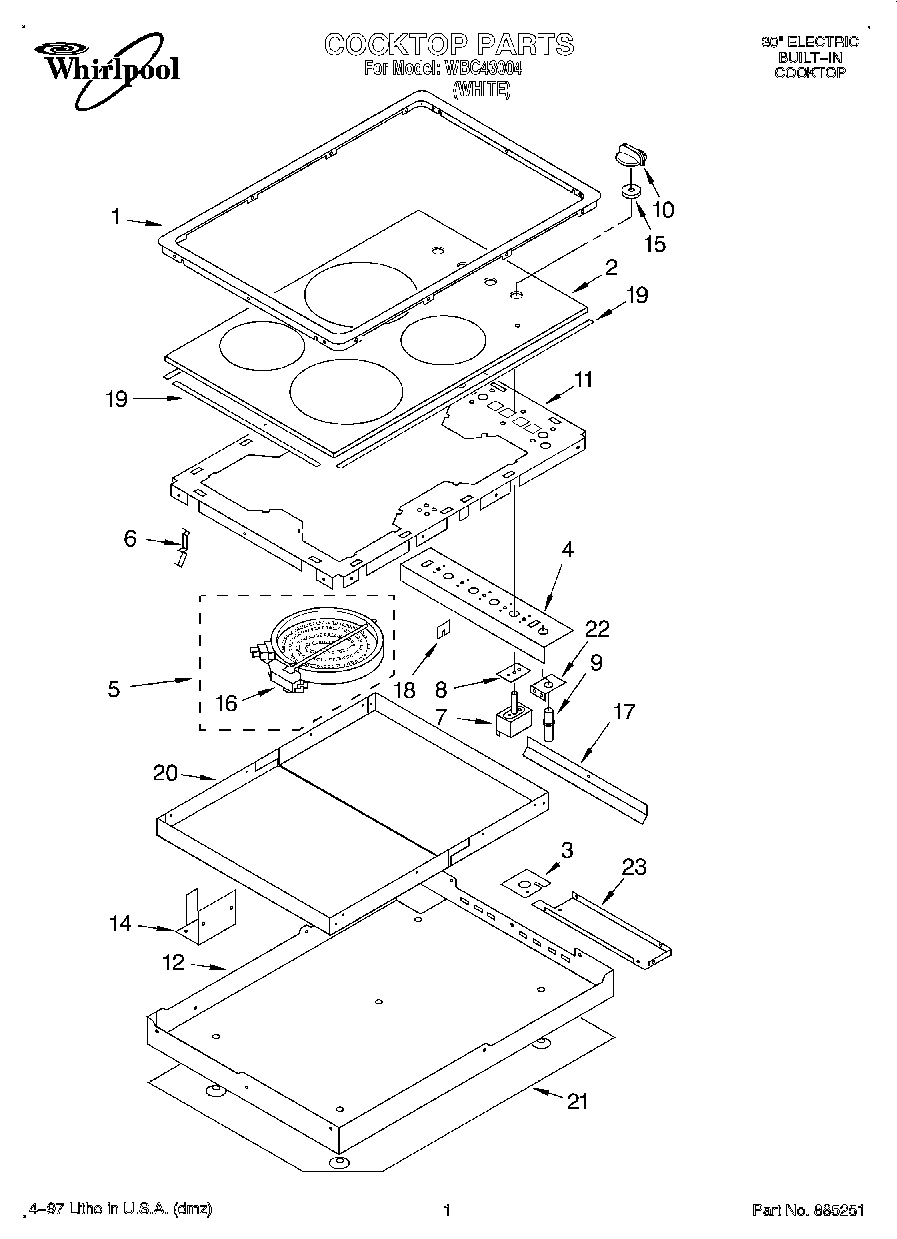

WBC43004 01 – SECTION

Products

Position	Product
	Wire (14 Ga. 150 c Yellow)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	Screw (6)
	WPL LIT4454653
	WPL LIT3189792
	WPL 4454657
	WPL LIT3190333
	WPL 3179589
	Conduit Assy
	Hardware Asm.
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Orange)
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	8528351 Whirlpool Clip
	Wire, 25“ Roll (White 14 GA.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25` Roll (Black 14 Ga.)
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Green)
1	Trim Ring, Cooktop
2	Cooktop, Glass
4	Bracket, Switch Mounting
5	Element, Surface (8“ R.R. 2100W)
5	Element, Surface (7“ R.F. 1700W)
5	Element, Surface (6“ L.R. 1400W)
5	Element, Surface (9“ L.F. 2400W)
6	WP486754 Whirlpool Compactor Screw
6	Spring, Locator (8)
7	Switch, Infinite (Use W/1700W Right Front & 2100W Right Rear Burner)
7	Switch, Infinite (Use W/1400W Left Rear Burner)
7	Switch, Infinite (Use W/2400W Left Front Burner)
8	3183956 Whirlpool Oven Seal Switch
8	WP486579 Whirlpool Air Conditioner Screw
9	Light, Indicator
10	WP9750372FW Whirlpool Knob Assembly
11	Backer, Plate
12	Cover, Bottom
14	Bracket, Wiring
15	Seal, Inifinite Switch
16	Limiter, Temp (2100W – RR)
16	Limiter, Temp (1700W – RF)
16	Limiter, Temp. (2400 W – LF)
16	Limiter, Temp. (1400 W – LR)
17	Screw,
17	Plate, Louver
18	Grommet
18	WPL 4454692
19	Seal, Silicone (Front & Back (2))
19	Seal, Silicone (Sides (2))
20	Shield, Heat (2)
21	Shield, Heat (Exterior)
22	Bracket, Ind. Lite
23	Bottom, Switch
23	Vent, Lower Trim (Screw (2))
