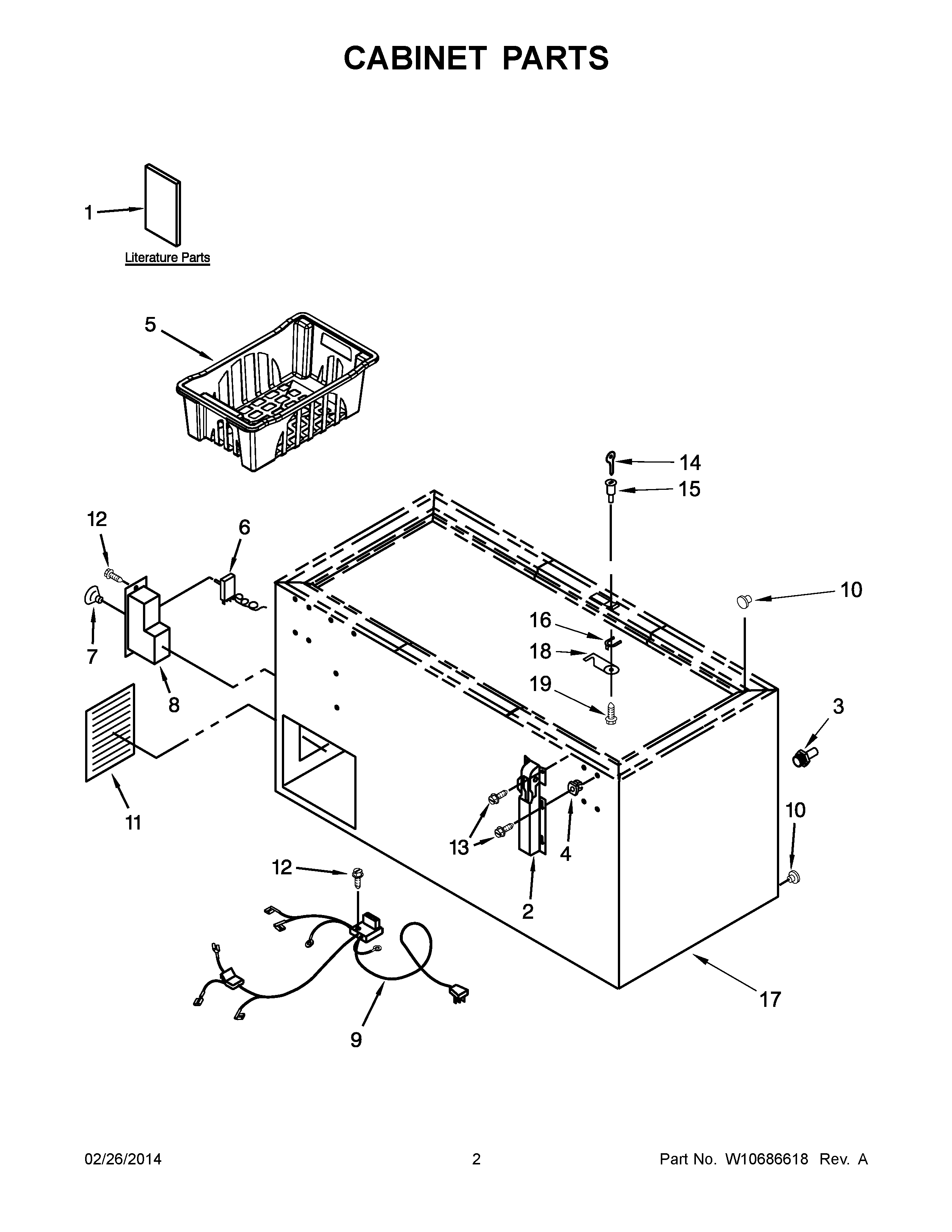

WC15001Q00 02 – CABINET PARTS

Written by

Products

Position	Product
1	USE & CARE GUIDE
2	HINGE, ASSEMBLY
3	ADAPTER, DRAIN
4	PLASTIC, GROMMET
5	BASKET
6	THERMOSTAT
7	KNOB, THERMOSTAT
8	CONTROL BOX
9	HARNESS, WIRING
10	DRAIN, PLUG
11	ACCESS PANEL
12	SCREW
13	SCREW
14	KEY
15	LOCK KIT
16	CLIP, SPRING
17	CABINET (NOT A SERVICEABLE PART)
18	HOOK BOLT, LOCK
19	SCREW
