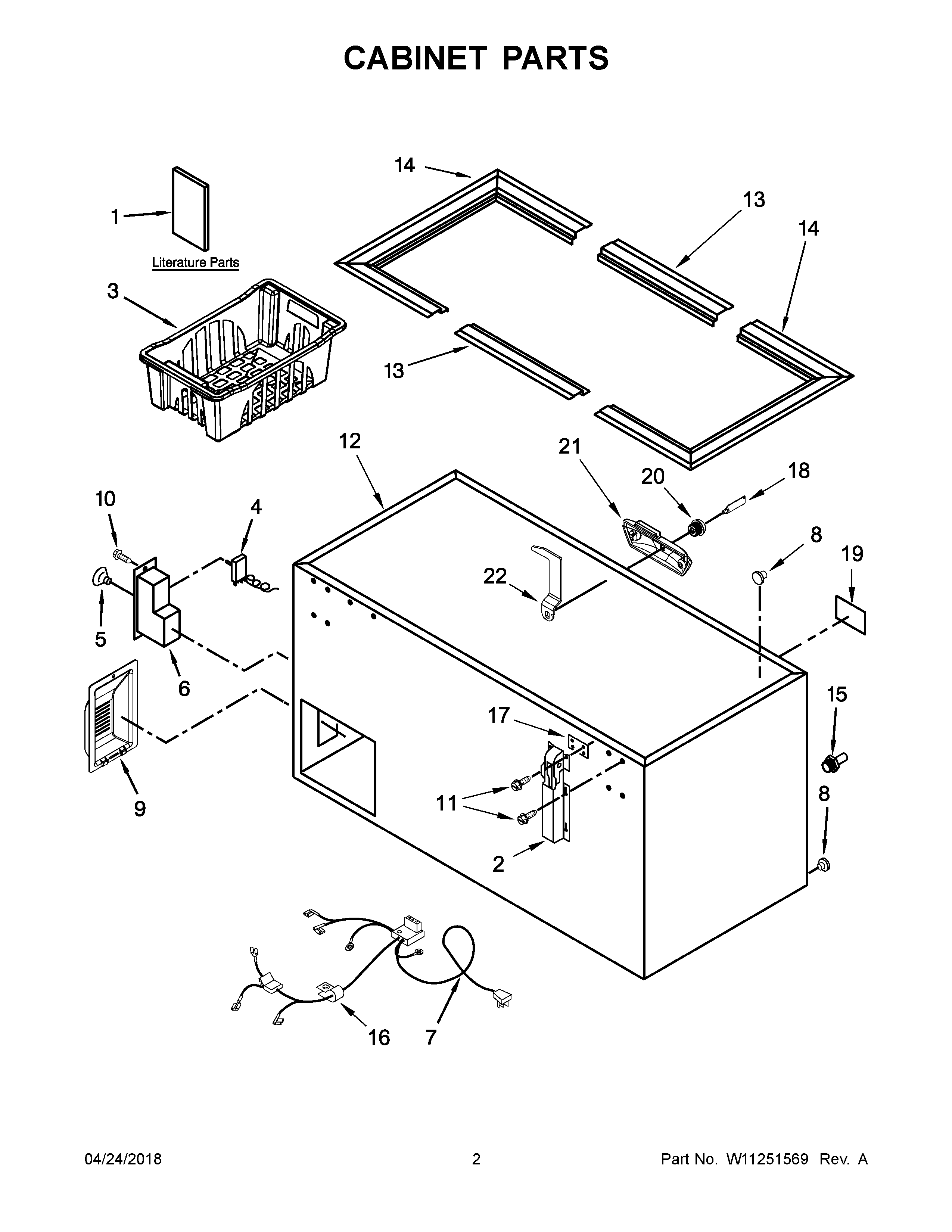

WC22014Q01 02 – CABINET PARTS

Products

Position	Product
1	USE & CARE GUIDE
2	W11192185 Whirlpool Refrigerator Door Hinge
3	W11553315 Whirlpool Refrigerator Basket
4	THERMOSTAT
5	W10738934 Whirlpool Refrigerator Thermostat Knob
6	W10682894 Whirlpool Refrigerator Control Box
7	W10631222 Whirlpool Refrigerator Harness
8	DRAIN, PLUG
9	W10574468 Whirlpool Refrigerator Panel
10	SCREW
11	SCREW
12	CABINET (NOT A SERVICEABLE PART)
13	W11251043 Whirlpool Breaker Trim
14	W11045300 Whirlpool Refrigerator Trim Bracket
15	ADAPTER, DRAIN
16	W11234470 Whirlpool Refrigerator Clamp
17	SPACER, HINGE
18	W10838052 Whirlpool Refrigerator Door Key
19	W11178521 Whirlpool Dishwasher Nameplate
20	W10664016 Whirlpool Refrigerator Door Lock
21	W10711162 Whirlpool Refrigerator Cover
22	W10714897 Whirlpool Refrigerator Hook
