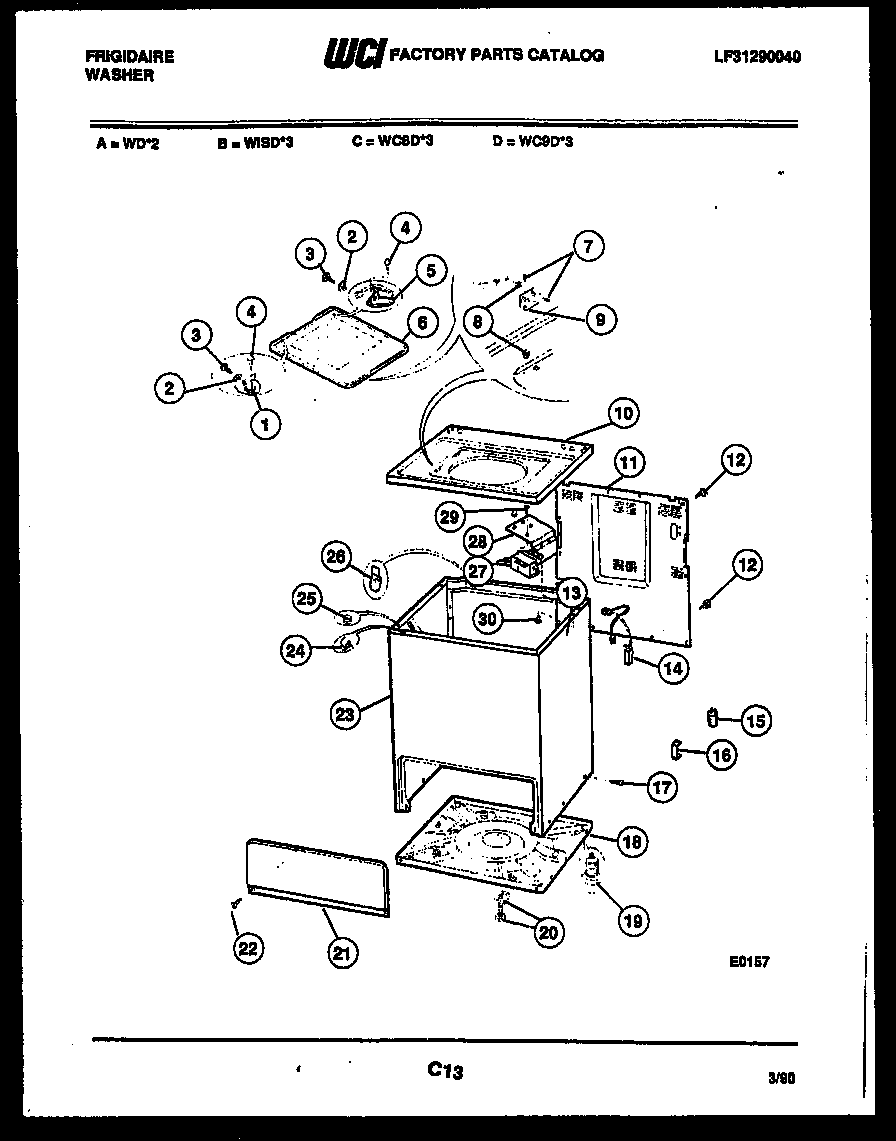

WC8DL3 04 – CABINET PARTS

WC8DL3 04 – CABINET PARTS

Written by

in

WC8DL3 04 – CABINET PARTS

Products

PositionProduct
1WCI 08015519
2WCI 08002408
35304455649 Frigidaire Refrigerator Screw
4WCI 08015520
5WCI 3018962
6WCI 08950205
7WCI 08027483
8WCI 08010830
9RIVET (2)
10WCI 3018969
11WCI 08011286
125303015671 Frigidaire Bracket Termination Screw
135303209428 Frigidaire Serv.Cord Bushing
14WCI 08015515
15WCI 08014903
16WCI 08014902
17131205500 Frigidaire Screw
18WCI 08011290
19WCI 08950088
20WCI 08004066
21PNL ACCESS (ALMOND)
22SCREW
23WCI 08015514
24WCI 08001597
25WCI 08001596
26WCI 08002384
26AWCI 08011276
27WCI 3017110
28WCI 3018963
29SEMS SCREW (2)
30RIVET (3)
