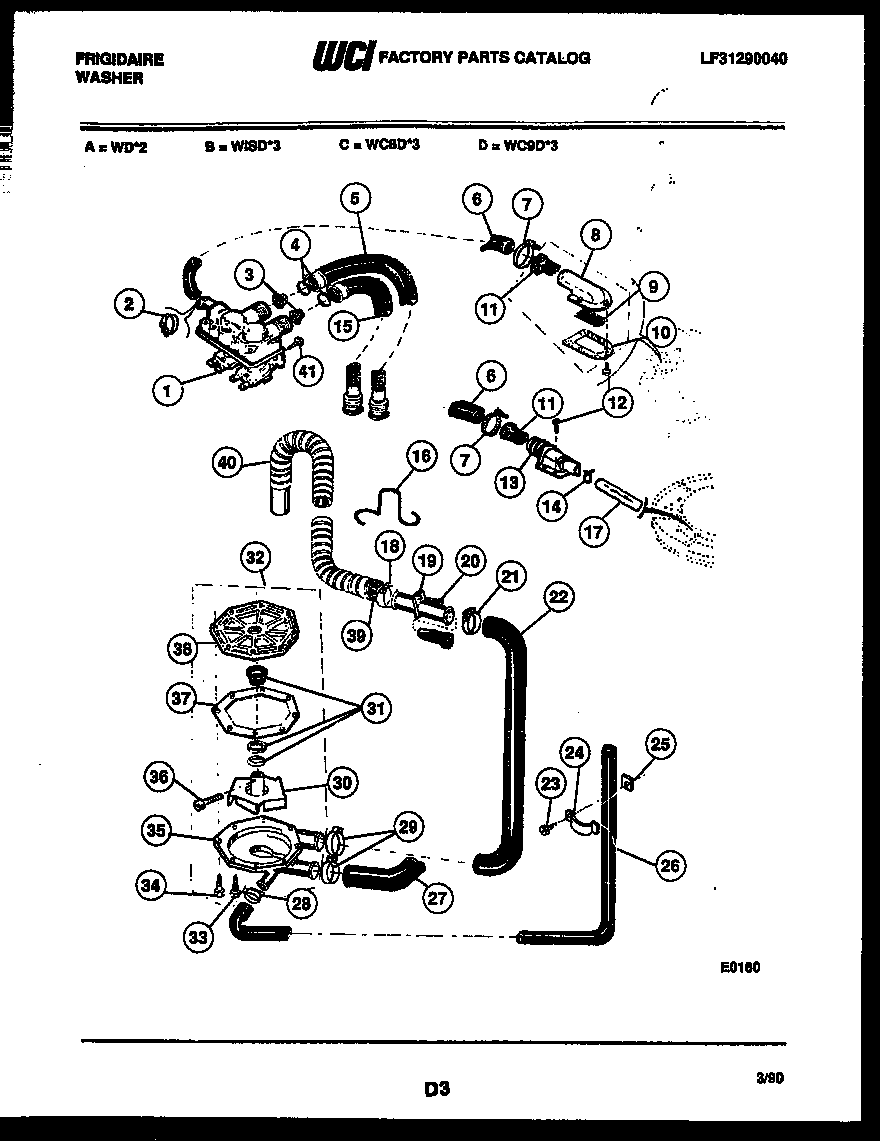

WC8DL3 06 – PUMP, WATER VALVE AND WATER INLET

WC8DL3 06 – PUMP, WATER VALVE AND WATER INLET

Written by

in

WC8DL3 06 – PUMP, WATER VALVE AND WATER INLET

Products

PositionProduct
*182655308027429 Frigidaire Dryer High Temperature Adhesive
*18265WCI 08002501
*18265WCI 08950052
*18265WCI 08027666
1134190200 Frigidaire Washer Water Valve
2WCI 08006572
3WCI 08002439
45303161296 Frigidaire Washer-Inlet Hose (1Piece)
6WCI 08008471
7WCI 08007731
12WCI 08016753
13WCI 08015905
14CLAMP, HOSE
15WCI 6561384
16WCI 08002362
17WCI 08015912
18WCI 5364154013
19WCI 08015078
21WCI 08004057
22WCI 08015531
23SCREW-BACK PANEL/SUPPORT-TOP CENTER
24WCI 08002356
25WCI 08002355
26WCI 08002353
27WCI 08002364
28WCI 08015517
29WCI 08014914
30WCI 08950055
31WCI 08950093
32WCI 08015497
335304401796 Frigidaire Screws
34WCI 08002390
35WCI 08002391
36WCI 08002392
37WCI 08002396
38WCI 08002397
39WCI 08011277
40WCI 3205936
41WCI 08001638
