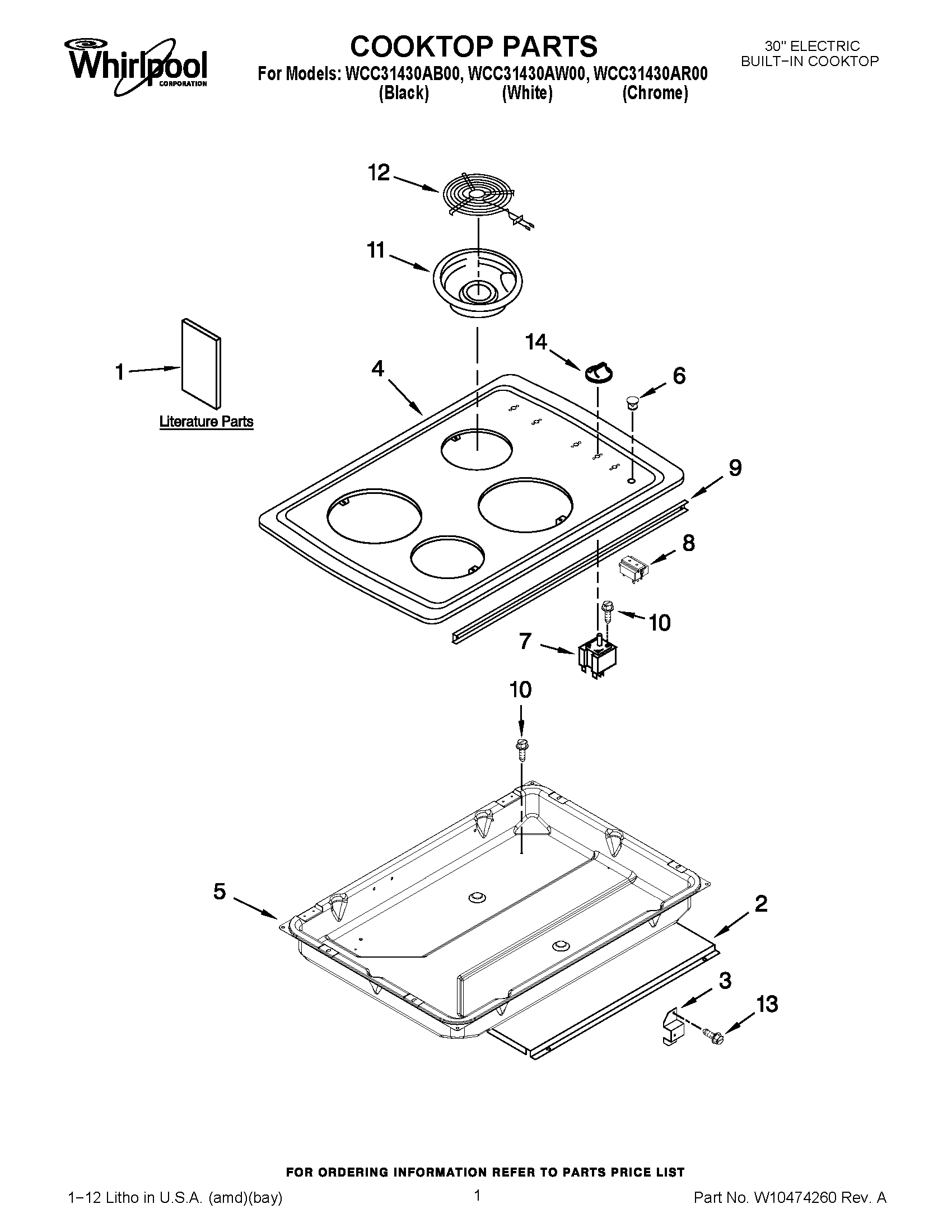

WCC31430AB00 01 – COOKTOP PARTS

Products

Position	Product
NI	CONDUIT ASSEMBLY
NI	GROMMET, HARNESS
NI	HARNESS, MAIN
1	Safer Cooking Tips (French)
1	WIRING DIAGRAM
1	USE & CARE GUIDE
1	INSTALLATION INSTRUCTIONS
1	SAFER COOKING TIPS (ENGLISH
2	BAFFLE, MAIN TOP
3	BRACKET, MOUNTING
4	WPW10457743 Whirlpool Cooktop
4	WPW10457738 Whirlpool Cooktop
4	COOKTOP (WHITE)
5	BURNER BOX
6	LENS, INDICATOR LAMP
7	SWITCH, INFINITE (RIGHT FRONT)
7	SWITCH, INFINITE (RIGHT REAR)
8	LIGHT, INDICATOR
9	BRACKET, MOUNTING
10	SCREW, HINGE
11	Bowl, Drip (Chr 6“)
11	Bowl, Drip (Chr 8“)
12	WPW10345410 Whirlpool Surface Element
12	WPW10259868 Whirlpool Surface Heating Element
13	SCREW, COVER (4)
14	W11170892 Whirlpool Knob
14	WPW10454079 Whirlpool Knob
