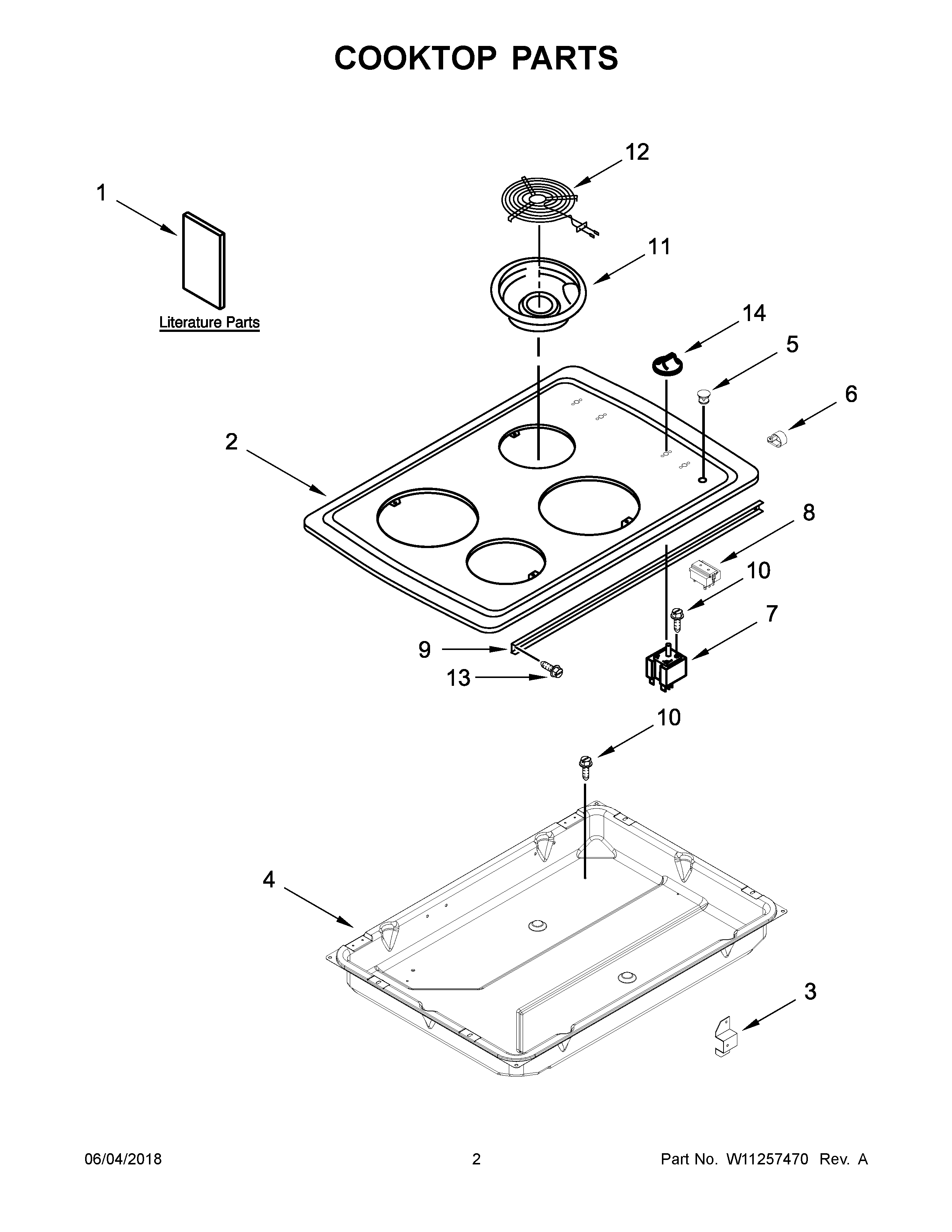

WCC31430AB01 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	GROMMET, HARNESS
NI	SCREW (FOR ELEMENT WIRE HARNESS)
NI	18 BK 125C
NI	W11171895 Whirlpool Wire Harness
NI	HARNESS, MAIN
NI	WIRING HARNESS PARTS, SCREW, GROUND
1B	WIRING DIAGRAM
1	INSTRUCTIONS, INSTALLATION
1A	GUIDE, USE & CARE
2A	COOKTOP (WHITE)
2	WPW10457738 Whirlpool Cooktop
5	LENS, INDICATOR LAMP
6	CLAMP, WIRE
7A	SWITCH, INFINITE (RIGHT FRONT)
7	SWITCH, INFINITE (RIGHT REAR)
8	LIGHT, INDICATOR
10	3400855 Whirlpool Oven Screw
11	Bowl, Drip (Chr 6“)
11A	Bowl, Drip (Chr 8“)
12A	ELMNT-SURF
12	W11396792 Whirlpool Surface Coil Element
13	SCREW, HINGE
14	WPW10454079 Whirlpool Knob
14A	W11170892 Whirlpool Knob
