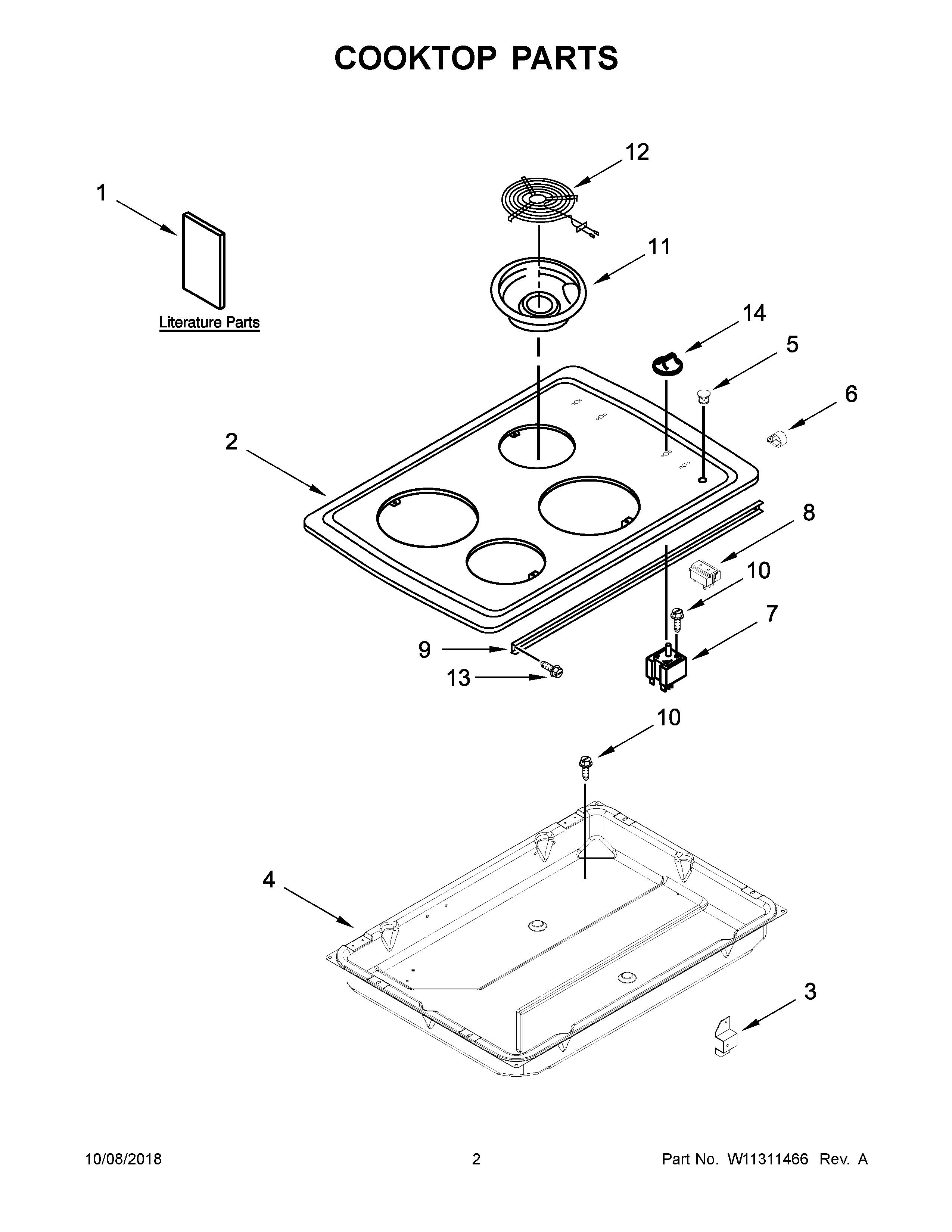

WCC31430AB02 02 – COOKTOP PARTSadmin2025-04-26T12:57:47+00:00WCC31430AB02 02 – COOKTOP PARTS
Products
| Position | Product |
|---|
| NI | CABINET (NOT A SERVICEABLE PART) |
| NI | SCREW (FOR ELEMENT WIRE HARNESS) |
| NI | 18 BK 125C |
| NI | W11740803 Whirlpool Wire Harness |
| NI | W11171895 Whirlpool Wire Harness |
| NI | GROMMET, HARNESS |
| NI | WIRING HARNESS PARTS, SCREW, GROUND |
| 1B | WIRING DIAGRAM |
| 1 | INSTRUCTIONS, INSTALLATION |
| 1A | GUIDE, USE & CARE |
| 2A | COOKTOP (WHITE) |
| 2 | WPW10457738 Whirlpool Cooktop |
| 5 | LENS, INDICATOR LAMP |
| 6 | CLAMP, WIRE |
| 7A | SWITCH, INFINITE (RIGHT FRONT) |
| 7 | SWITCH, INFINITE (RIGHT REAR) |
| 8 | LIGHT, INDICATOR |
| 10 | 3400855 Whirlpool Oven Screw |
| 11 | Bowl, Drip (Chr 6``) |
| 11A | Bowl, Drip (Chr 8``) |
| 12A | ELMNT-SURF |
| 12 | W11396792 Whirlpool Surface Coil Element |
| 13 | SCREW, HINGE |
| 14 | WPW10454079 Whirlpool Knob |
| 14A | W11170892 Whirlpool Knob |
