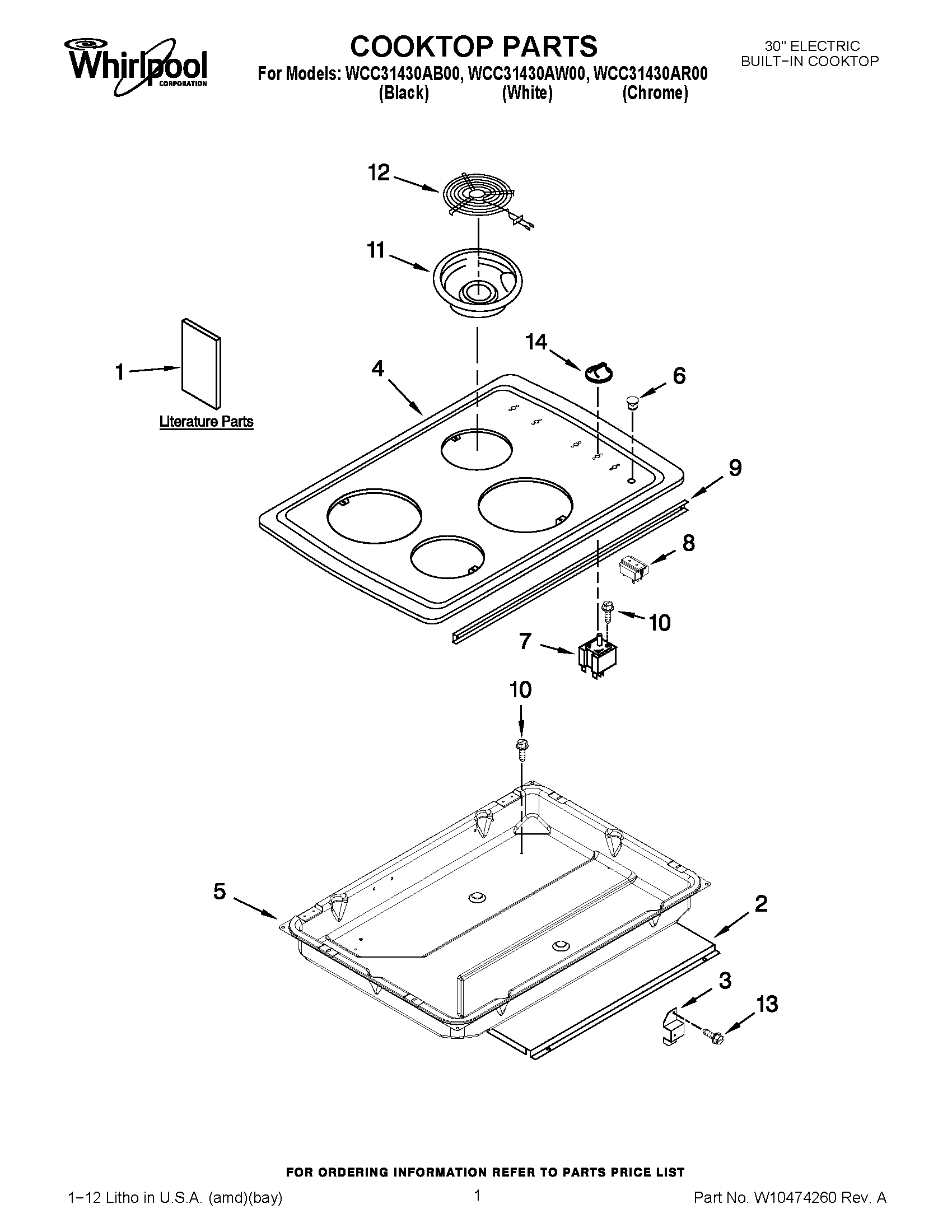

WCC31430AW00 01 – COOKTOP PARTS

Products

PositionProduct
NICONDUIT ASSEMBLY
NIGROMMET, HARNESS
NIHARNESS, MAIN
1Safer Cooking Tips (French)
1WIRING DIAGRAM
1USE & CARE GUIDE
1INSTALLATION INSTRUCTIONS
1SAFER COOKING TIPS (ENGLISH
2BAFFLE, MAIN TOP
3BRACKET, MOUNTING
4WPW10457743 Whirlpool Cooktop
4WPW10457738 Whirlpool Cooktop
4COOKTOP (WHITE)
5BURNER BOX
6LENS, INDICATOR LAMP
7SWITCH, INFINITE (RIGHT FRONT)
7SWITCH, INFINITE (RIGHT REAR)
8LIGHT, INDICATOR
9BRACKET, MOUNTING
10SCREW, HINGE
11Bowl, Drip (Chr 6“)
11Bowl, Drip (Chr 8“)
12WPW10345410 Whirlpool Surface Element
12WPW10259868 Whirlpool Surface Heating Element
13SCREW, COVER (4)
14W11170892 Whirlpool Knob
14WPW10454079 Whirlpool Knob
