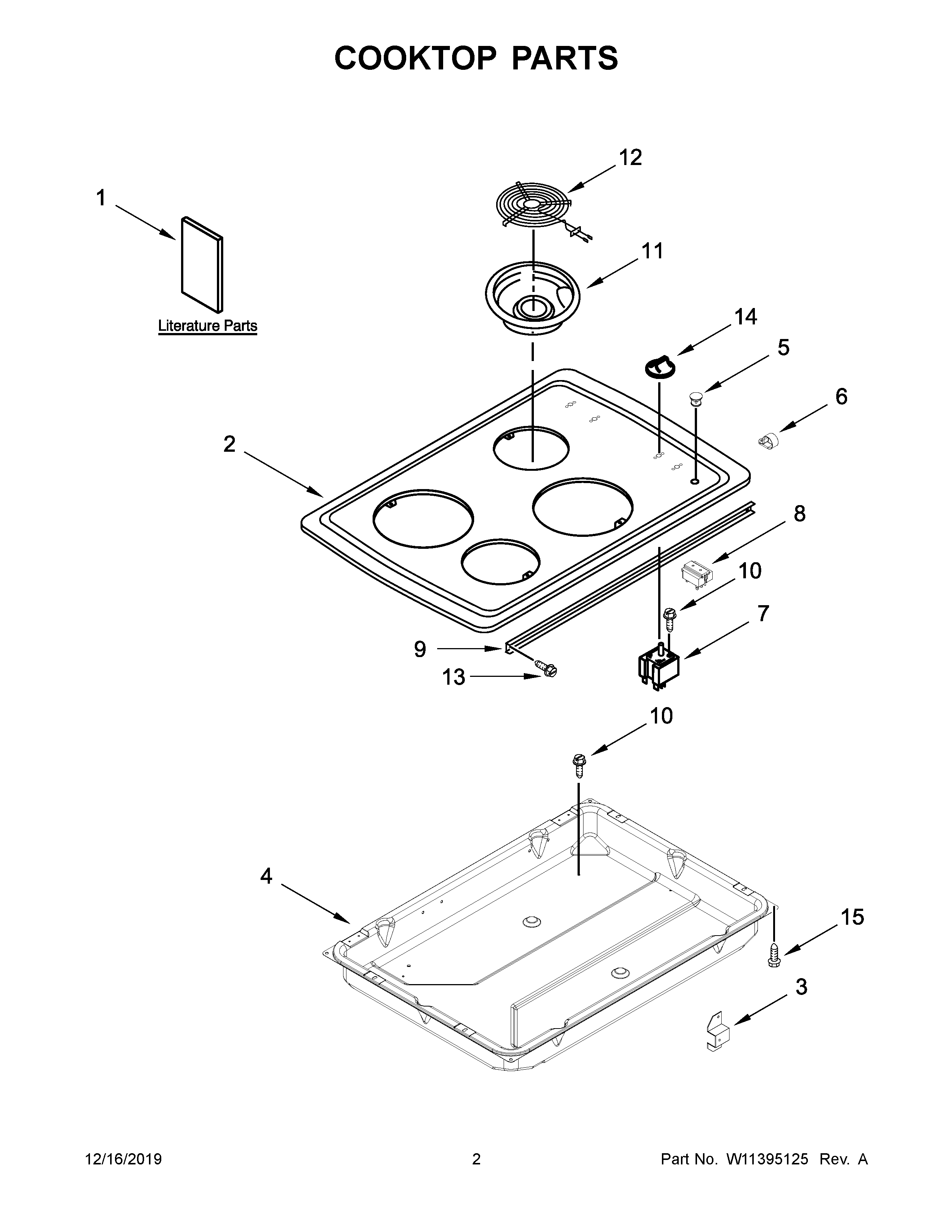

WCC31430AW03 02 – COOKTOP PARTS

Products

Position	Product
NI	GROMMET, HARNESS
NI	W11171895 Whirlpool Wire Harness
NI	W11740803 Whirlpool Wire Harness
NI	18 BK 125C
NI	WIRING HARNESS PARTS, SCREW, GROUND
NI	SCREW (FOR ELEMENT WIRE HARNESS)
NI	CABINET (NOT A SERVICEABLE PART)
1B	WIRING DIAGRAM
1A	GUIDE, USE & CARE
1	INSTRUCTIONS, INSTALLATION
2	WPW10457738 Whirlpool Cooktop
2A	COOKTOP (WHITE)
5	LENS, INDICATOR LAMP
6	CLAMP, WIRE
7A	SWITCH, INFINITE (RIGHT FRONT)
7	SWITCH, INFINITE (RIGHT REAR)
8	LIGHT, INDICATOR
10	3400855 Whirlpool Oven Screw
11A	Bowl, Drip (Chr 8“)
11	Bowl, Drip (Chr 6“)
12A	ELMNT-SURF
12	W11396792 Whirlpool Surface Coil Element
13	SCREW, HINGE
14	WPW10454079 Whirlpool Knob
14A	W11170892 Whirlpool Knob
15	SCREW
