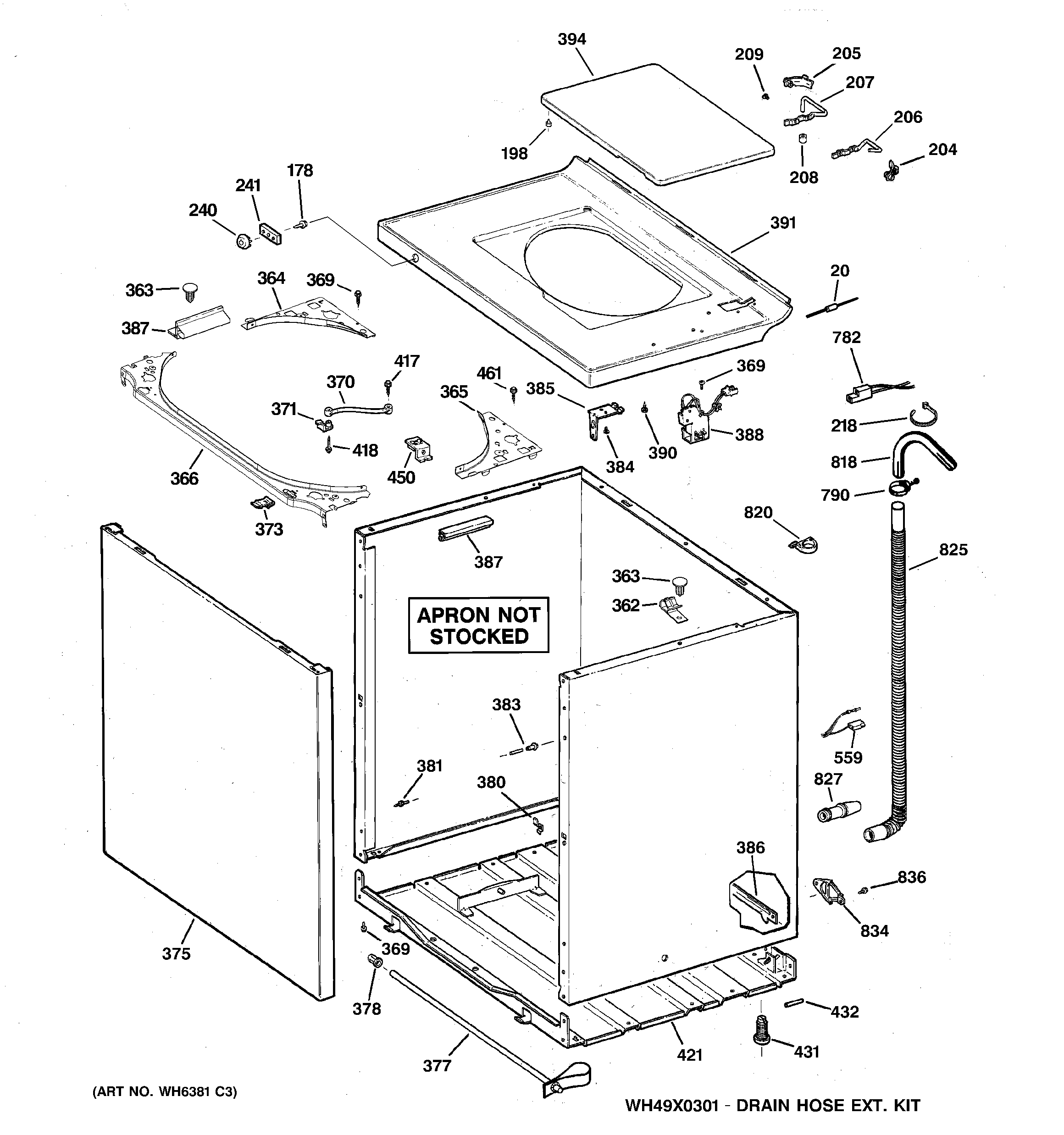

WCCB1030H3WC CABINET, COVER & FRONT PANEL

WCCB1030H3WC CABINET, COVER & FRONT PANEL

Written by

in

WCCB1030H3WC CABINET, COVER & FRONT PANEL

Products

PositionProduct
20GEN WH49X10041
178WB1X1118 GE Oven Screw 6-32T
198WH1X2722 GE Lid Bumper
204WH1X2741 GE BSHNG Hinge
205WH01X10025 GE Hinge Bushing
206WH1X2783 GE Washer Hinge Wireform
207WH01X10033 GE Wireform Hinge
208GEN WH01X2742
209WH2X1211 GE Screw
218WH01X10704 GE Wire Tie
240WH1X2266 GE Button Plug
241WH1X2268 GE Retainer
362GEN WH02X10257
363GEN WH02X10258
364GEN WH16X10101
365GEN WH16X10102
366WH49X20925 GE Rod Support Service
369WH2X1217 GE Screw Assembly
370WH1X2727 GE Washer Tub Support Strap
371WH1X2726 GE Retaining Strap
373WH02X10279 GE Washer Locking Clip
375GEN WH46X10110
377SHIPPING BAR ASM
378WH1X2745 GE Plug Button
380GEN WH02X1207
381WH2X1190 GE Ground Stud
383WH2X1189 GE Alignment Pin
384SCREW 8-15 A 3/4 SP HXW
384WH01X10423 GE Screw 6-20 B TRT 3/8 S
385WH01X10422 GE Cover Clip
386WH46X10094 GE Self-Leveling Bar
387GEN WH41X10161
388GEN WH12X1051
390GEN WH01X2724
391GEN WH44X1218
394GEN WH44X10014
417GEN WH02X0694
418WH02X10282 GE Screw 8-18 B IHW 1 S
421WH46X10148 GE Base Assembly
431WH2X1187 GE Leveling Assembly
432GEN WH02X1188
450WH16X528 GE Nut and Bracket
461WZ5X158D GE Screw Package of 12
559GEN WH12X0538
782WB17X5060 GE Oven Block Assembly
790WH1X2036 GE UNIX Clamp
818NOZZLE-DRAIN
820WH1X2725 GE Antenna Clip
825WH41X10053 GE Hose & Spring
827WH41X10020 GE Drain Adapter
834WH16X513 GE Washer Drain Hose Clip
836WH02X10002 GE Screw
