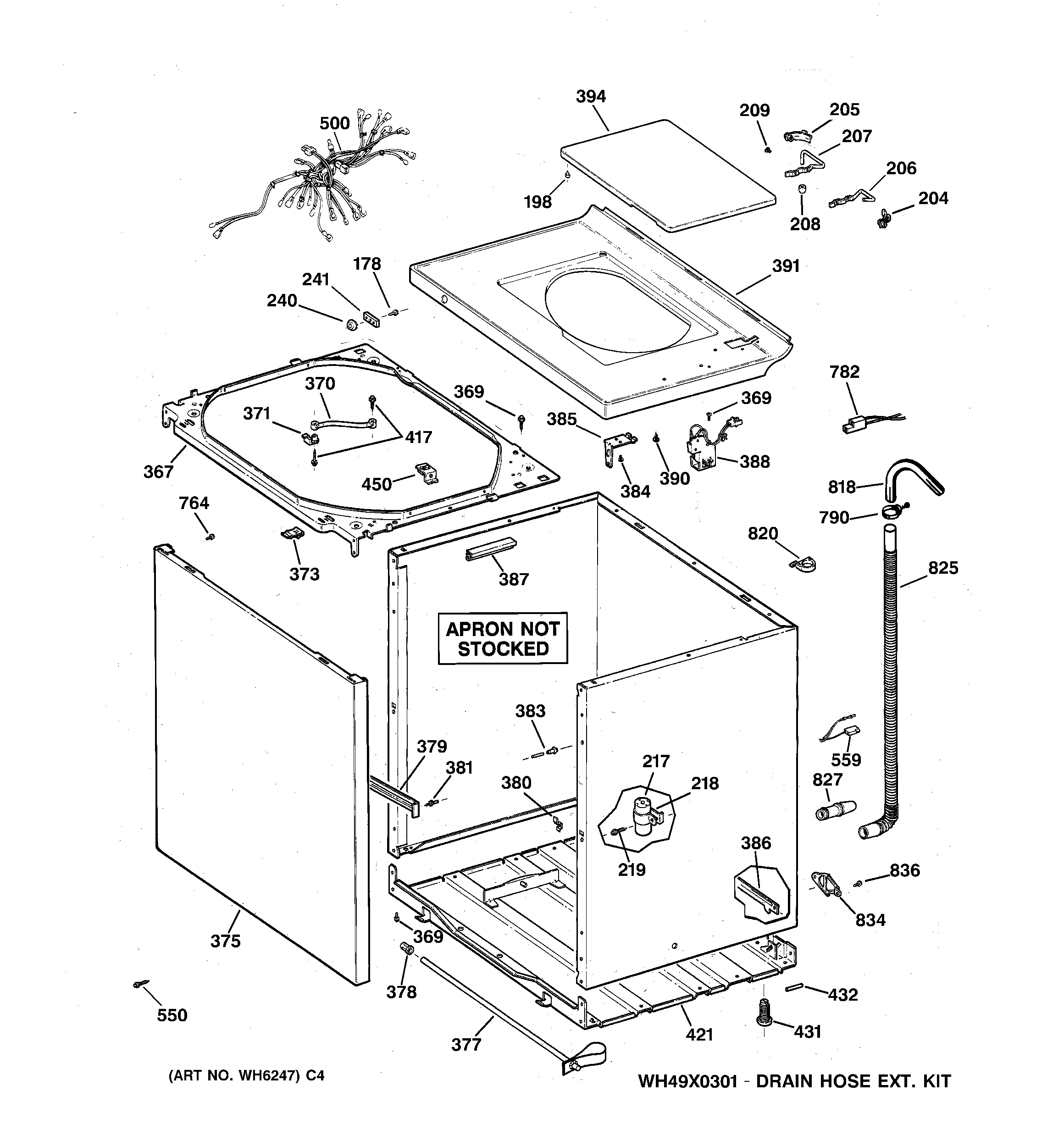

WCCB2050T5AC CABINET, COVER & FRONT PANEL

WCCB2050T5AC CABINET, COVER & FRONT PANEL

Written by

in

WCCB2050T5AC CABINET, COVER & FRONT PANEL

Products

PositionProduct
178GEN WH02X0939
198WH1X2722 GE Lid Bumper
204GEN WH01X2752
205GEN WH01X2759
206WH1X2783 GE Washer Hinge Wireform
207GEN WH01X2762
208GEN WH01X2742
209WH2X1211 GE Screw
217GEN WH12X1041
218GEN WH01X2758
219GEN WH02X1220
240WH1X2266 GE Button Plug
241WH1X2268 GE Retainer
367GEN WH46X0364
369WH2X1217 GE Screw Assembly
370WH1X2727 GE Washer Tub Support Strap
371WH1X2726 GE Retaining Strap
373WH02X10279 GE Washer Locking Clip
375GEN WH46X0347
377SHIPPING BAR ASM
378WH1X2745 GE Plug Button
379GEN WH16X0514
380GEN WH02X1207
381WH2X1190 GE Ground Stud
383WH2X1189 GE Alignment Pin
384WH01X10423 GE Screw 6-20 B TRT 3/8 S
385WH01X10422 GE Cover Clip
386GEN WH46X0342
387WH41X10036 GE Conduit Preset
388GEN WH12X1051
390GEN WH01X2724
391GEN WH44X1217
394GEN WH44X1220
417GEN WH02X0694
421GEN WH46X0346
431WH2X1187 GE Leveling Assembly
432GEN WH02X1188
450WH16X528 GE Nut and Bracket
500GEN WH19X0312
550GEN WE02X0281
559GEN WH12X0538
764GEN WB01X5755
782WB17X5060 GE Oven Block Assembly
790WH1X2036 GE UNIX Clamp
818NOZZLE-DRAIN
820WH1X2725 GE Antenna Clip
825WH41X10053 GE Hose & Spring
827WH41X10020 GE Drain Adapter
834WH16X513 GE Washer Drain Hose Clip
836WH2X1186 GE Screw
