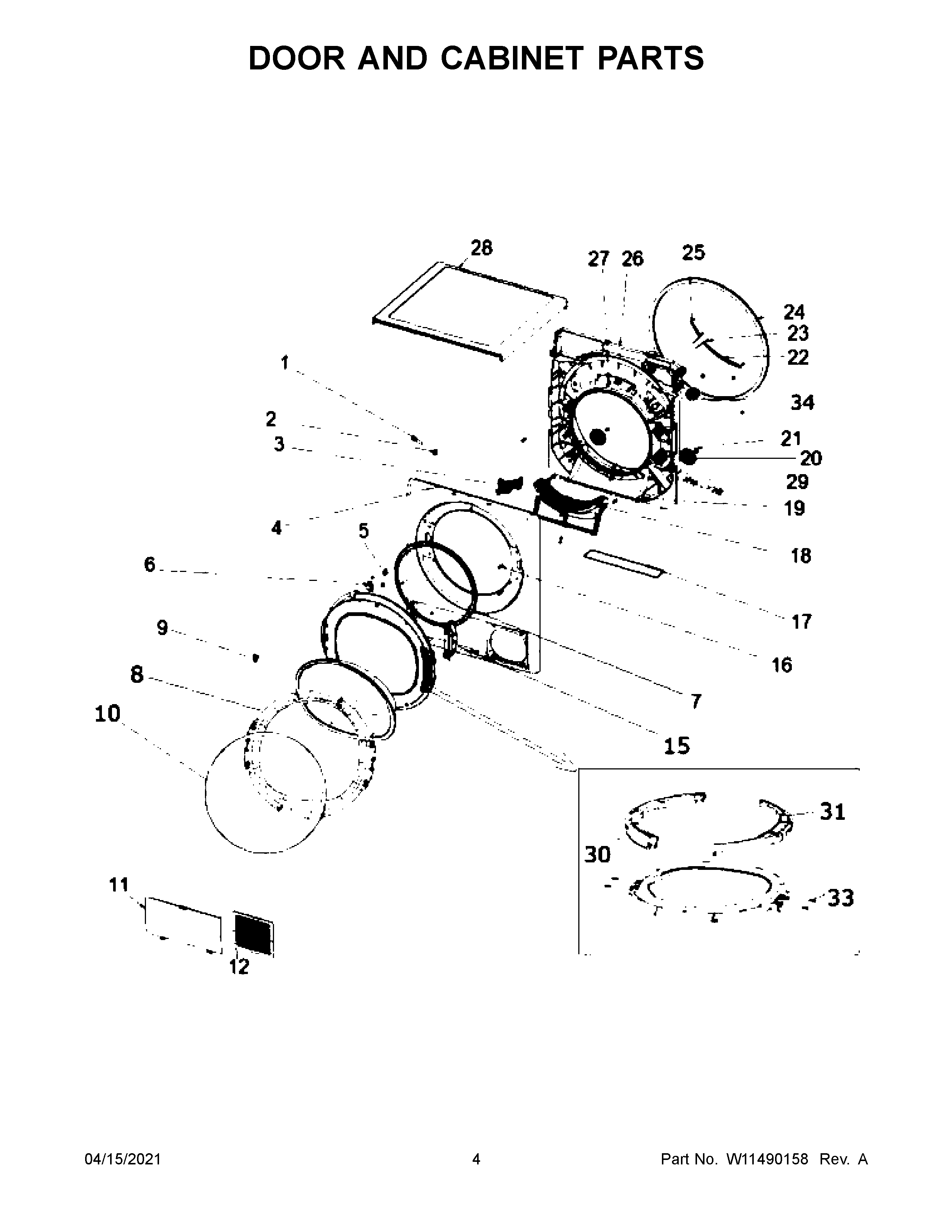

WCD3090JW0 03 – DOOR AND CABINET PARTS

Products

Position	Product
1	W11676452 Whirlpool Sensor
2	SEAL, NTC
3	W11512146 Whirlpool Door Switch
4	W11512148 Whirlpool Panel
5	W11512150 Whirlpool Strike
6	W11512151 Whirlpool Strike Assembly
7	W10713648 Whirlpool Dryer Door Seal
8	W11096641 Whirlpool Trim Ring
9	W11712578 Whirlpool Strike Plate
10	W11246415 Whirlpool Door Assembly
11	COVER
12	ASSEMBLY, FILTER
12A	W11512156 Whirlpool Filter
15B	HINGE, DOOR
15A	461971424051 Whirlpool Block
15	ASSEMBLY, DOOR HINGE
17	SEAL, AIR CHANNEL
18	W11512159 Whirlpool Screen
19	W11516770 Whirlpool Dowel Pin
20	W11519506 Whirlpool Support
21	SCREW
22	W11519507 Whirlpool Sensor
23	251926501053 Whirlpool Screw
24	W11519508 Whirlpool Dishwasher Seal
26	AIR CHANNEL
28	W11516796 Whirlpool Top
30	W10615855 Whirlpool Door Assembly
31	W10615854 Whirlpool Door
33	251921201061 Whirlpool Screw
