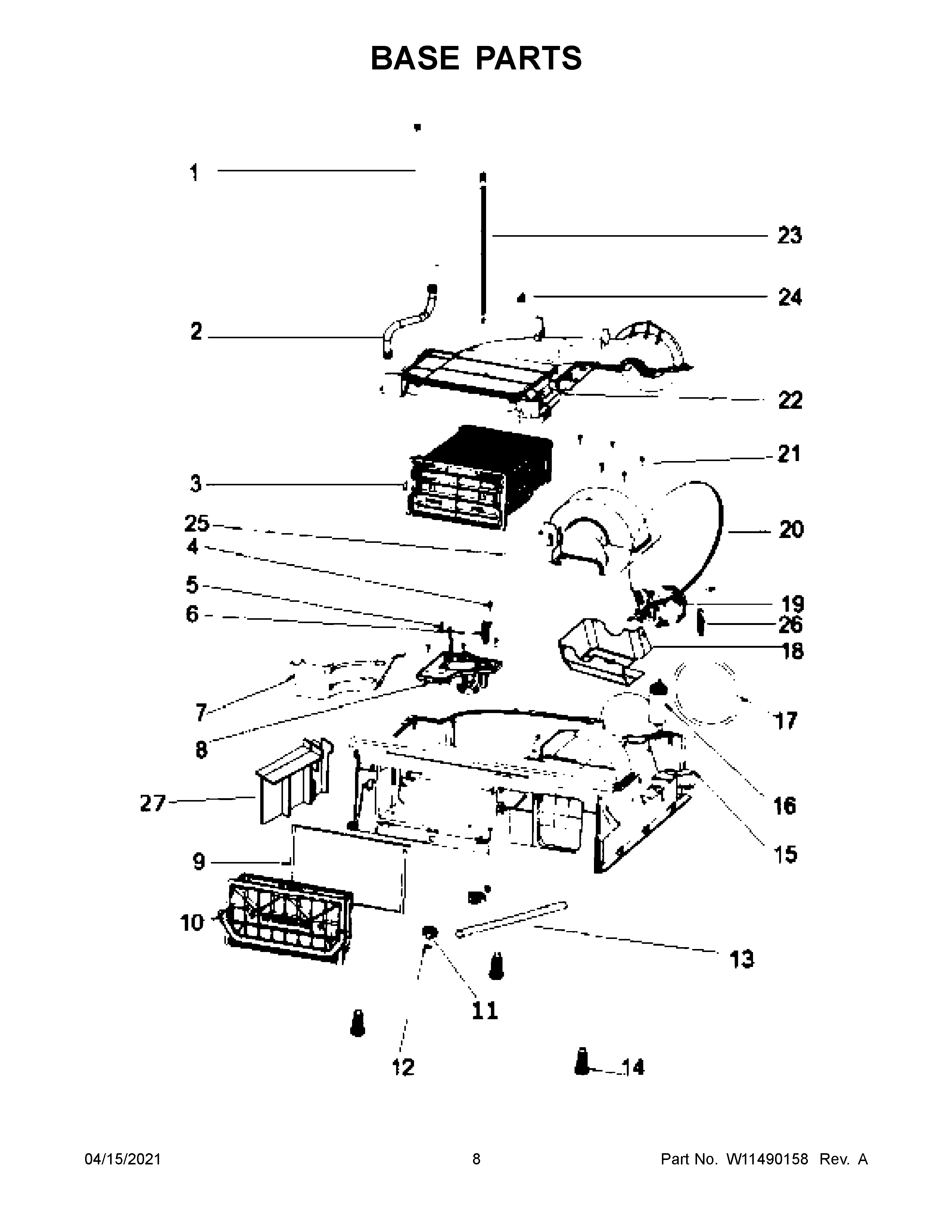

WCD3090JW0 05 – BASE PARTS

WCD3090JW0 05 – BASE PARTS

Written by

in

WCD3090JW0 05 – BASE PARTS

Products

Position	Product
1	U-BEND, DRAIN HOSE
2	HOSE, RECIRCULATION
3	CONDENSER
6	W11527199 Whirlpool Sensor
6A	W11526959 Whirlpool Seal Assembly
7	BRACKET, PUMP
8	W11516811 Whirlpool Pump
9	W11517008 Whirlpool Seal
10	W11516807 Whirlpool Outer Housing
10A	MAGNETS, DOOR SWITCH
11	W11526982 Whirlpool Connector
12	SEAL, O-RING
13	HOSE, TUBE
14	461971007235 Whirlpool Leveling Feet
15	ASSEMBLY, BASE (COMPLETE)
15A	251925600056 Whirlpool Screw
17	SEAL, BASE (REAR PANEL)
18	BRACKET, MOTOR (BASE)
19A	W11516774 Whirlpool Screw
19	W11519731 Whirlpool Motor
20	W11527053 Whirlpool Belt
21	W11527190 Whirlpool Screw
22	COVER, BASE
23	W11512160 Whirlpool Hose
24	CLAMP, HOSE 16.8MM
25	COVER, FAN
26	SPRING
27	BRACKET, REED SWITCH
