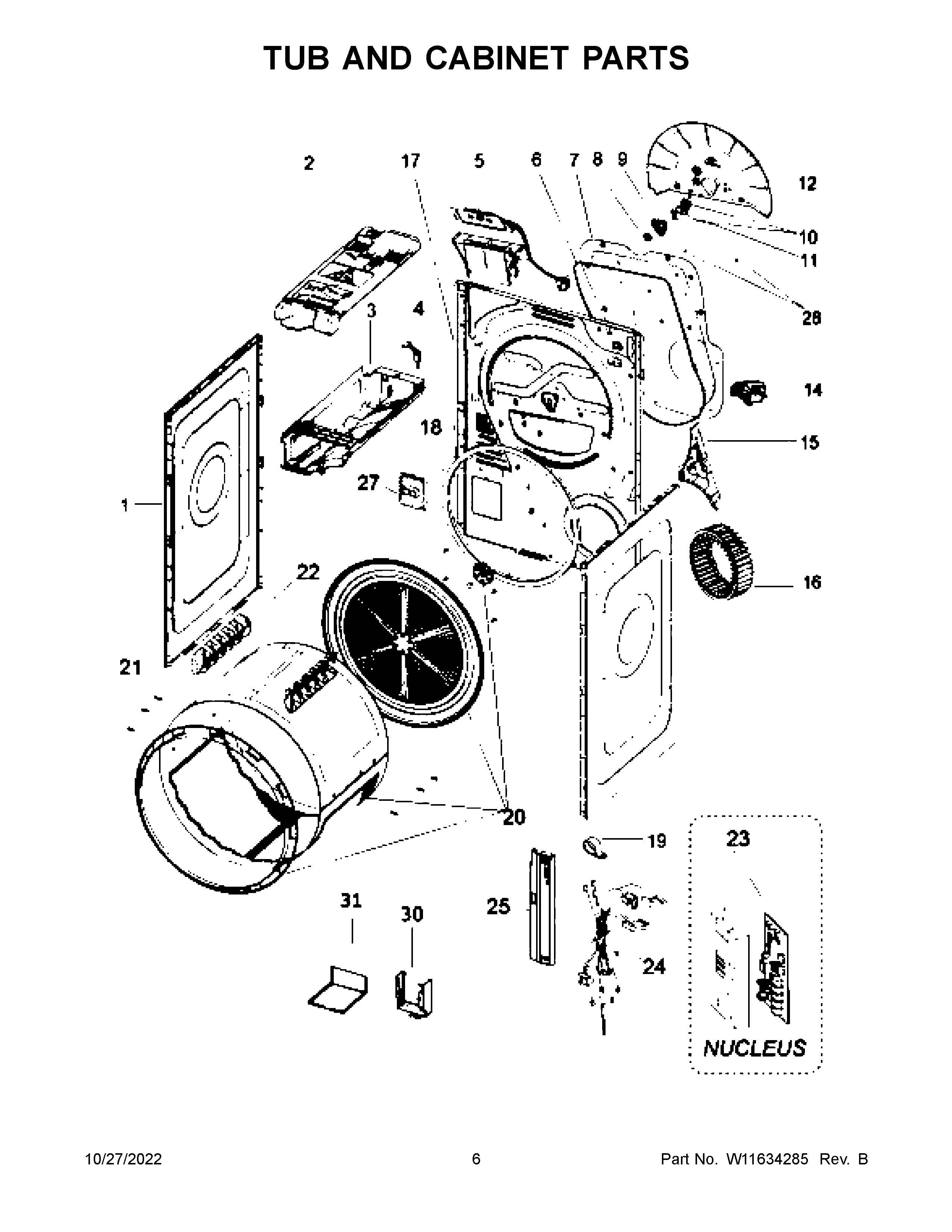

WCD5090JW0 04 – TUB AND CABINET PARTS

Products

Position	Product
1	W11516797 Whirlpool Panel
2	W11644691 Whirlpool Reservoir
3	HOUSING, WATER TANK
4	W10629345 Whirlpool Pipe
5	W11645251 Whirlpool Element
6	SEAL, HEATER CHANNEL (HP)
7	HEATER CHANNEL
7A	HEAT PAD METAL (LARGE)
8	461970104891 Whirlpool Bearing
9	461970109272 Whirlpool Support
10	461970105381 Whirlpool Cover
11	461970104831 Whirlpool Washer
12	COVER
14A	BRACKET, RFI FILTER
14	W10347721 Whirlpool Filter
15	SPOILER
16	W11519690 Whirlpool Wheel
16A	W11519718 Whirlpool Wheel
17	PANEL, REAR (BULKHEAD)
18	W11516795 Whirlpool Seal
19	CORD CLIP
20	ASSEMBLY, DRUM
20A	PAD, DAMPING
21	251925600056 Whirlpool Screw
22	BAFFLE, DRUM
23	W11644684 Whirlpool Electronic Control Board + Core
24	W11195379 Whirlpool Sensor Switch Assembly
24C	W11519730 Whirlpool Wire
24A	W11526969 Whirlpool Wire Harness
24B	W11526972 Whirlpool Wire Harness
24D	W11517011 Whirlpool Wire Harness
25	COVER, ACU (UPPER)
27	COVER, PUMP (REAR PANEL)
28	SPACER
30	HOUSING, TERMINAL BOX
30A	STRAIN RELIEF
31	COVER, TERMINAL BOX
