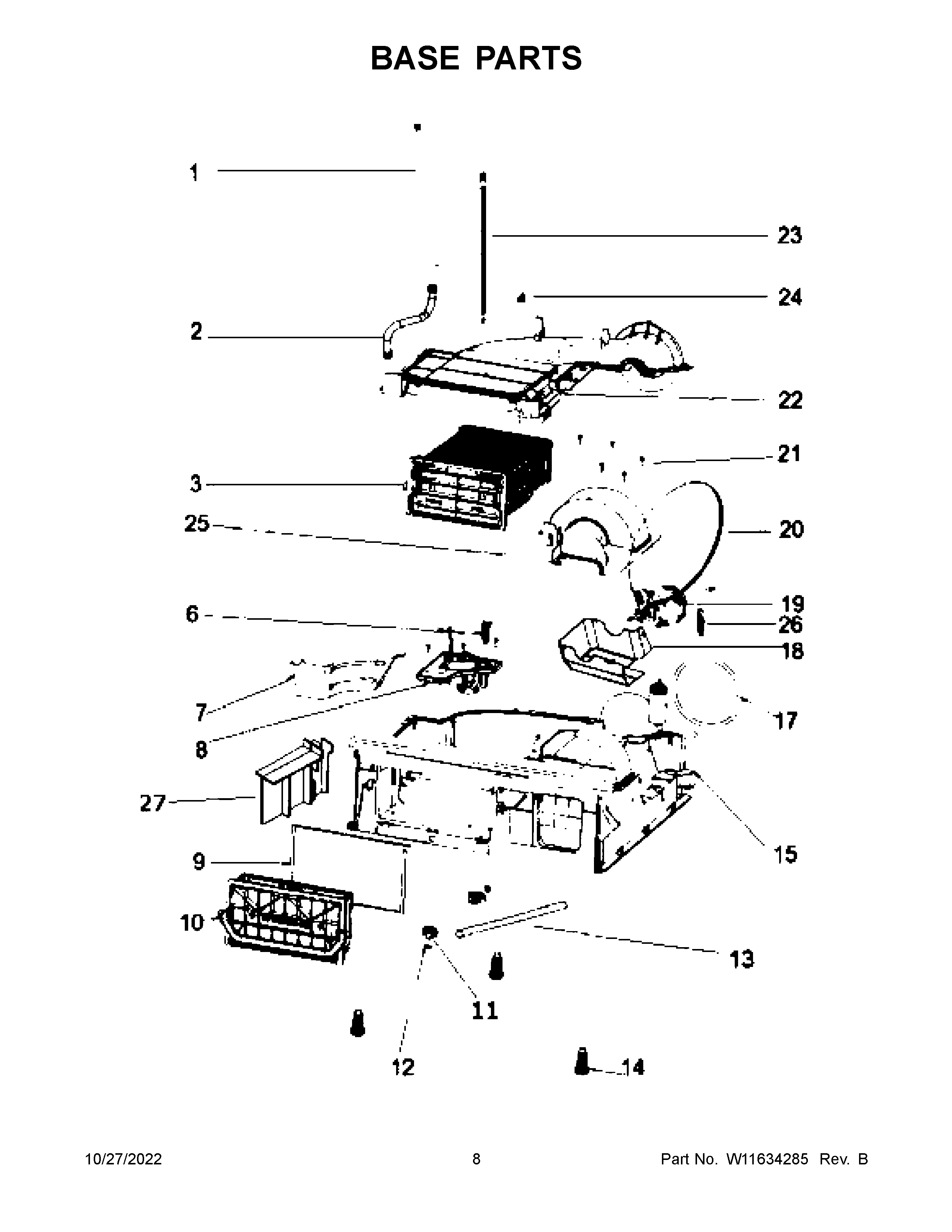

WCD5090JW0 05 – BASE PARTS

WCD5090JW0 05 – BASE PARTS

Written by

in

WCD5090JW0 05 – BASE PARTS

Products

PositionProduct
1U-BEND, DRAIN HOSE
2HOSE, RECIRCULATION
3CONDENSER
6AW11526959 Whirlpool Seal Assembly
6W11527199 Whirlpool Sensor
7BRACKET, PUMP
8W11516811 Whirlpool Pump
9W11517008 Whirlpool Seal
10AMAGNETS, DOOR SWITCH
10HOUSING, FILTER (FRONT)
11W11526982 Whirlpool Connector
12SEAL, O-RING
13HOSE, TUBE
14461971007235 Whirlpool Leveling Feet
15ASSEMBLY, BASE (COMPLETE)
15A251925600056 Whirlpool Screw
17SEAL, BASE (REAR PANEL)
18BRACKET, MOTOR (BASE)
19W11519731 Whirlpool Motor
19AW10700903 Whirlpool Idler Pulley
20W11661103 Whirlpool Dryer Belt
21W11527190 Whirlpool Screw
22COVER, BASE
23W11512160 Whirlpool Hose
24CLAMP, HOSE 16.8MM
25COVER, FAN
26SPRING
27BRACKET, REED SWITCH
