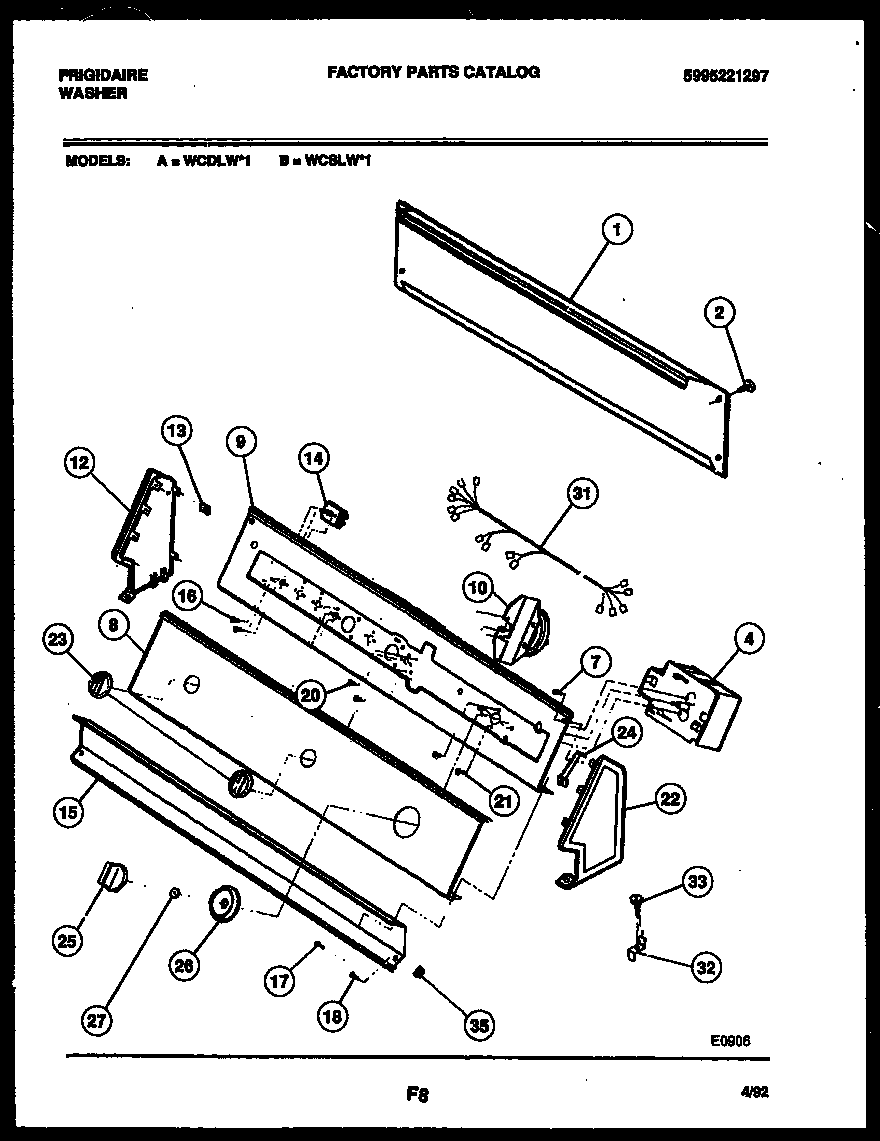

WCDLL1 05 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	WCI 3201322
2	5303015671 Frigidaire Bracket Termination Screw
4	WCI 5303271771
7	SCREW (2)
8	WCI 5303208809
9	WCI 5303208818
10	WCI 3205635
12	END CAP RH
13	CLIP (8)
14	WCI 5308015886
15	WCI 5303208798
16	WCI 3161259
17	WCI 08010782
18	WCI 3205820
20	131168200 Frigidaire Dryer Screw
21	SCREW (2)
22	WCI 3205876
23	WCI 5308014340
24	WCI 08014349
25	WCI 5308014337
26	WCI 5308015498
27	Spacer,washer ,timer shaft
31	WCI 5303208825
31A	WCI 5303285493
32	WCI 5379171000
33	131243800 Frigidaire Screw
35	CLIP
